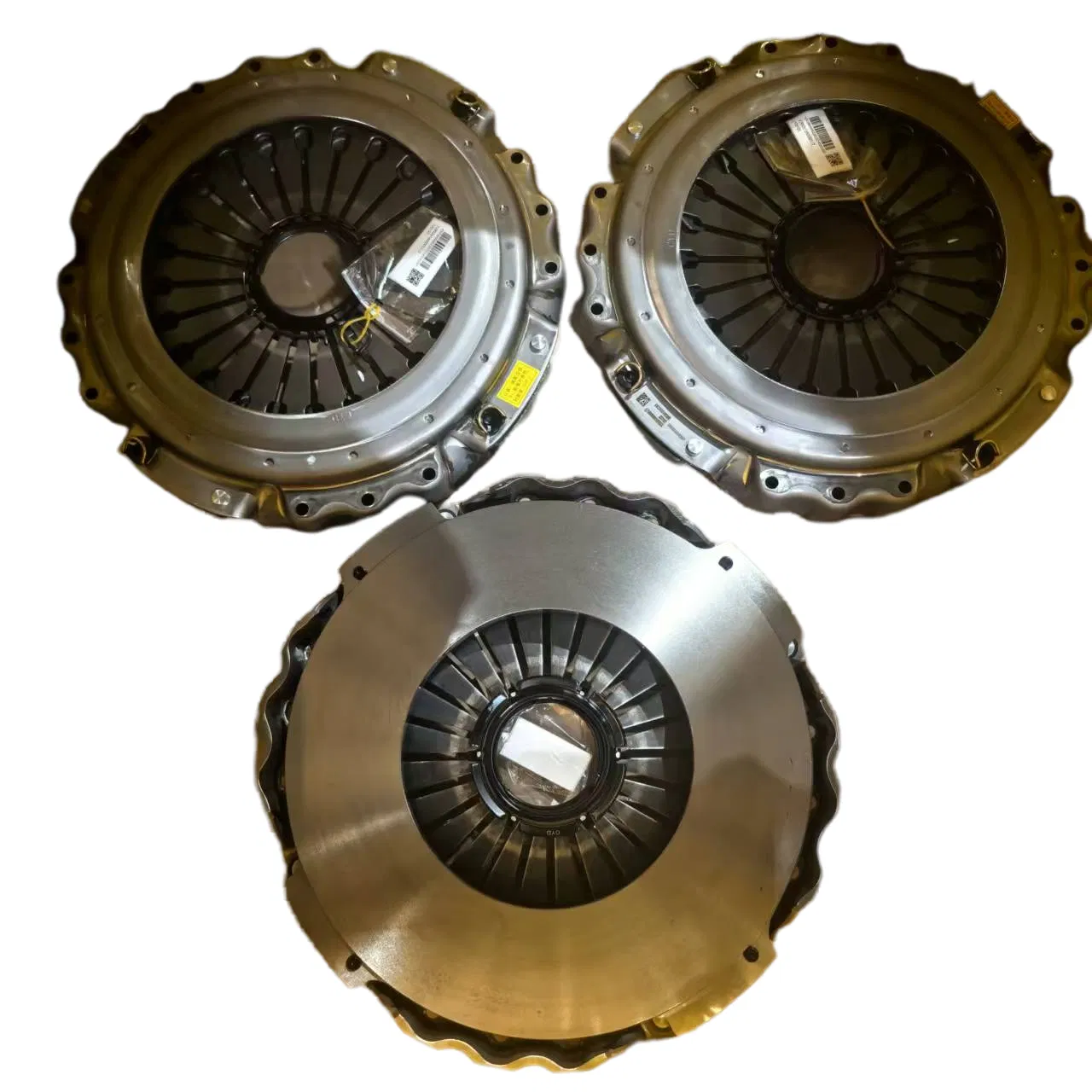

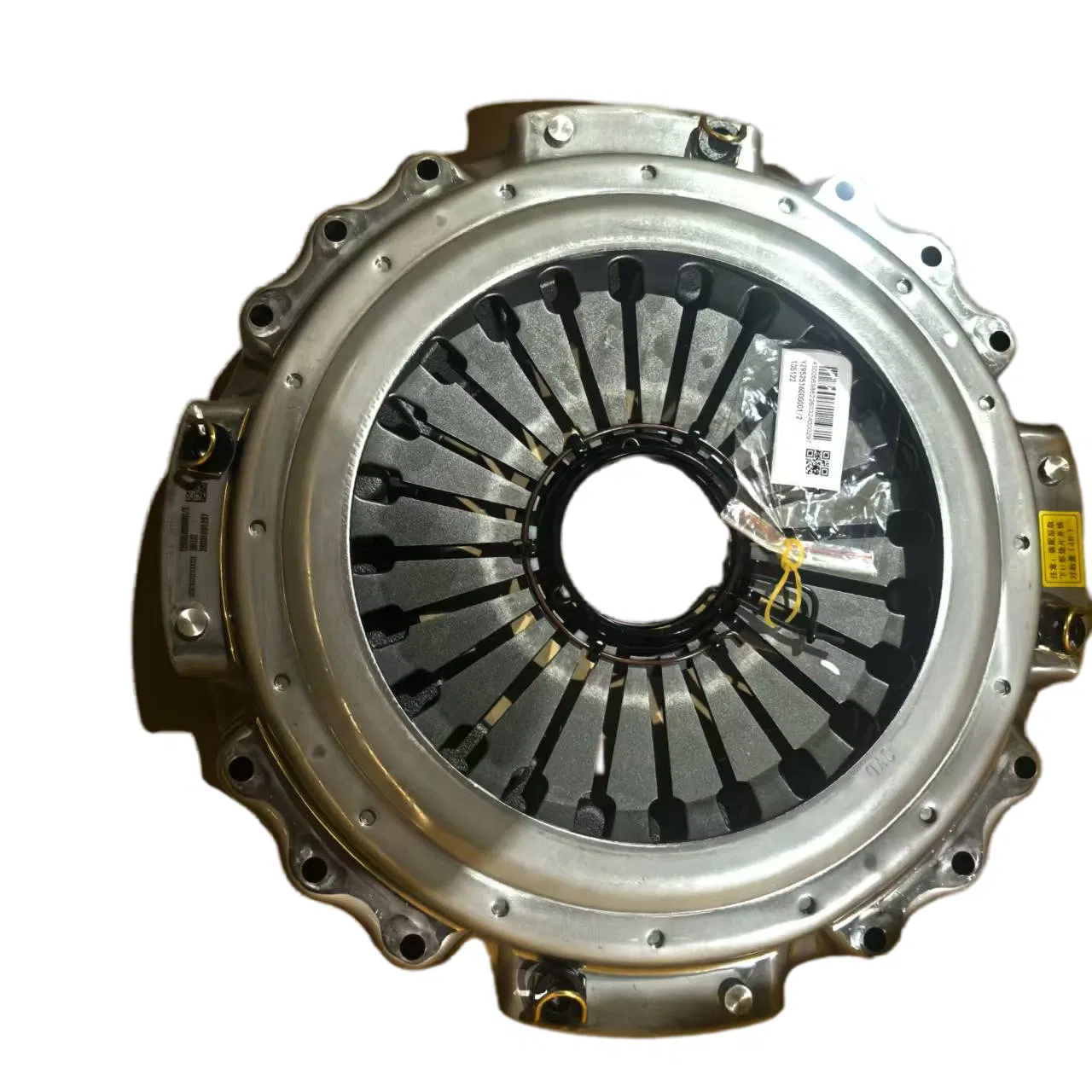

Reliable Sinotruk Clutch Kit Assembly Yz952516000001/2 for Truck Spare Use

Customization:	Available
After-sales Service:	Support
Part:	Clutch Cover

📋

Overview & Basic Info

Material:

Steel

Classification:

Magnetic Powder Clutch

Certification:

ISO/TS16949:2002

Usage:

Heavy Duty Trucks

Product Name:

Clutch Cover Assembly

Stroke:

4 Stroke

Application:

Heavy Duty Trucks & Tractors

Production Capacity:

4000 Thousands Pieces/Year

⚙️

Product Description

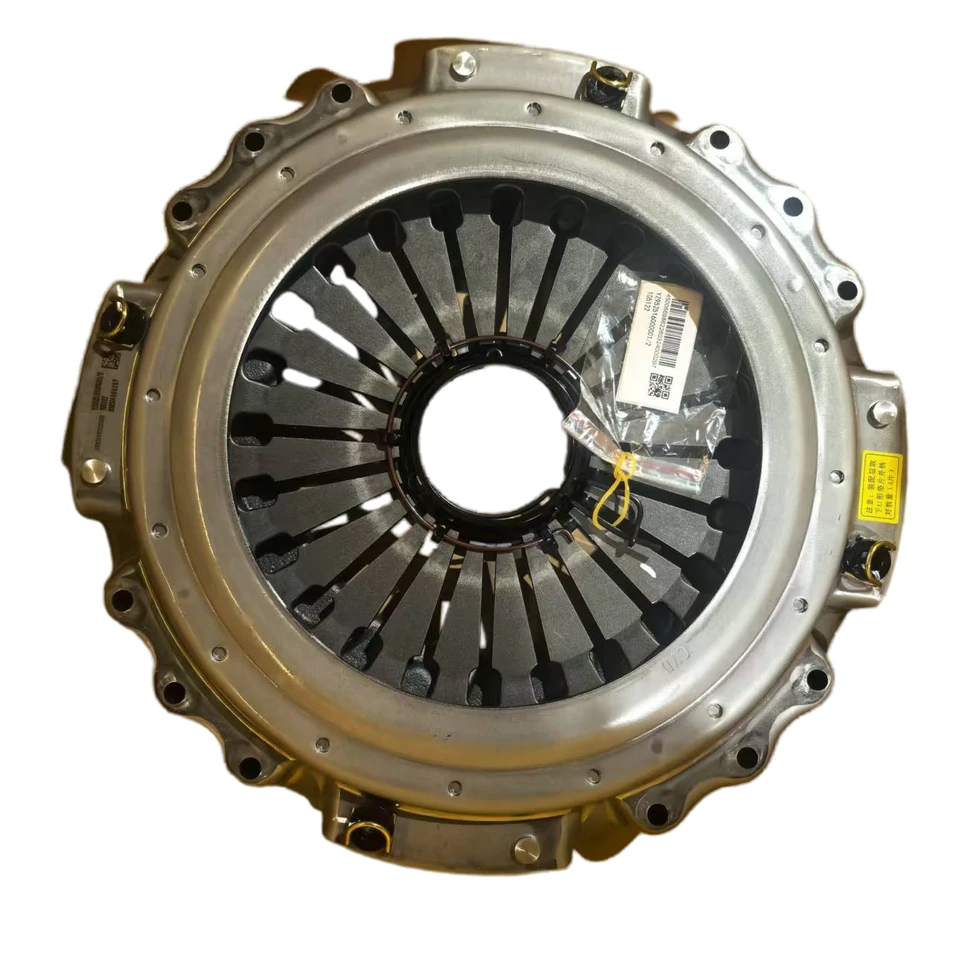

Clutch Cover Assembly Highlights

High-capacity clutch engineered for 2200 Nm torque and 39,000 N clamping force. Optimized release dynamics with a φ482 mm maximum diameter and 82 mm height.

OE-quality for heavy trucks.
Built for extreme torque environments.
Ideal for long-haul logistics and mining haulage.

🚀 Primary Applications

Heavy Duty Logistics: Perfect for long-distance trucking where reliability is critical.
Construction & Mining: Designed to handle extreme loads in terminal tractors and intermodal haulers.
Bulk Material Transport: Reliable performance for trucks carrying steel, timber, and bulk commodities.

📊

Technical Parameters

Parameter Item	Specifications
Matching Engine Torque	2200Nm
Clamping Force	39000N min
Release Force	8800N max
Release Finger Working Diameter	φ120mm
Installation Height	66.6mm
Release Stroke	(12-14)mm
Wear Amount	3mm
Spigot Diameter	φ475mm
Pressure Plate Outer Diameter	φ240mm
Maximum Outer Diameter	φ483mm
Reference Code	YZ952516000001/2

📸

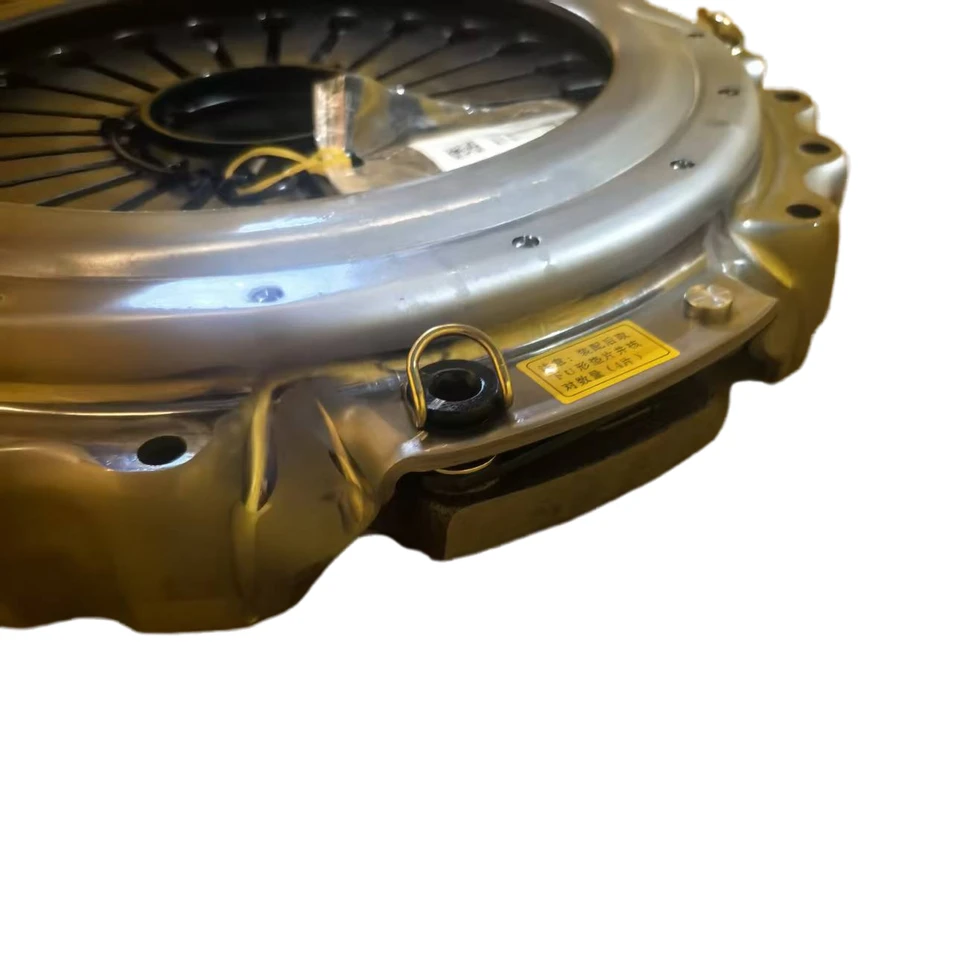

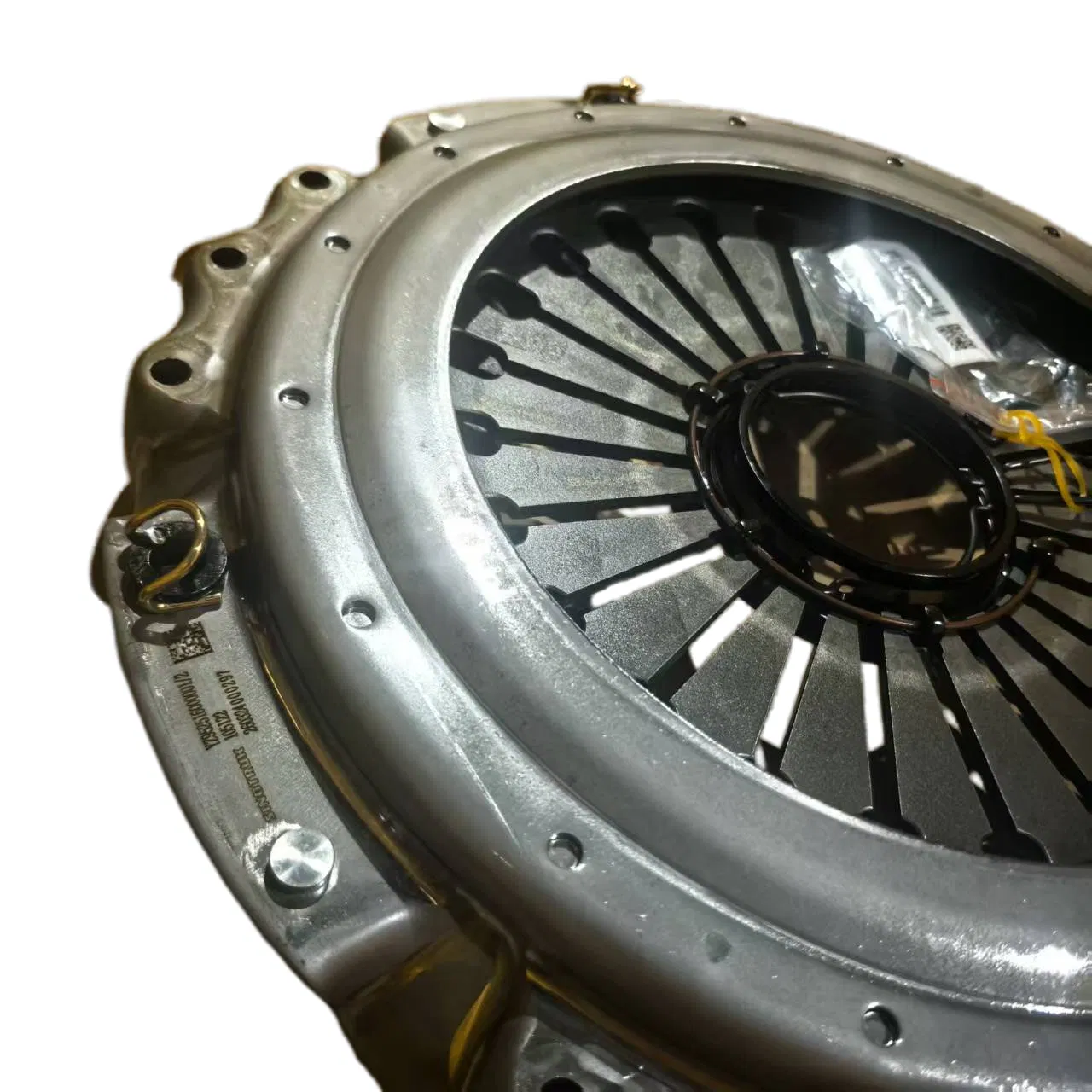

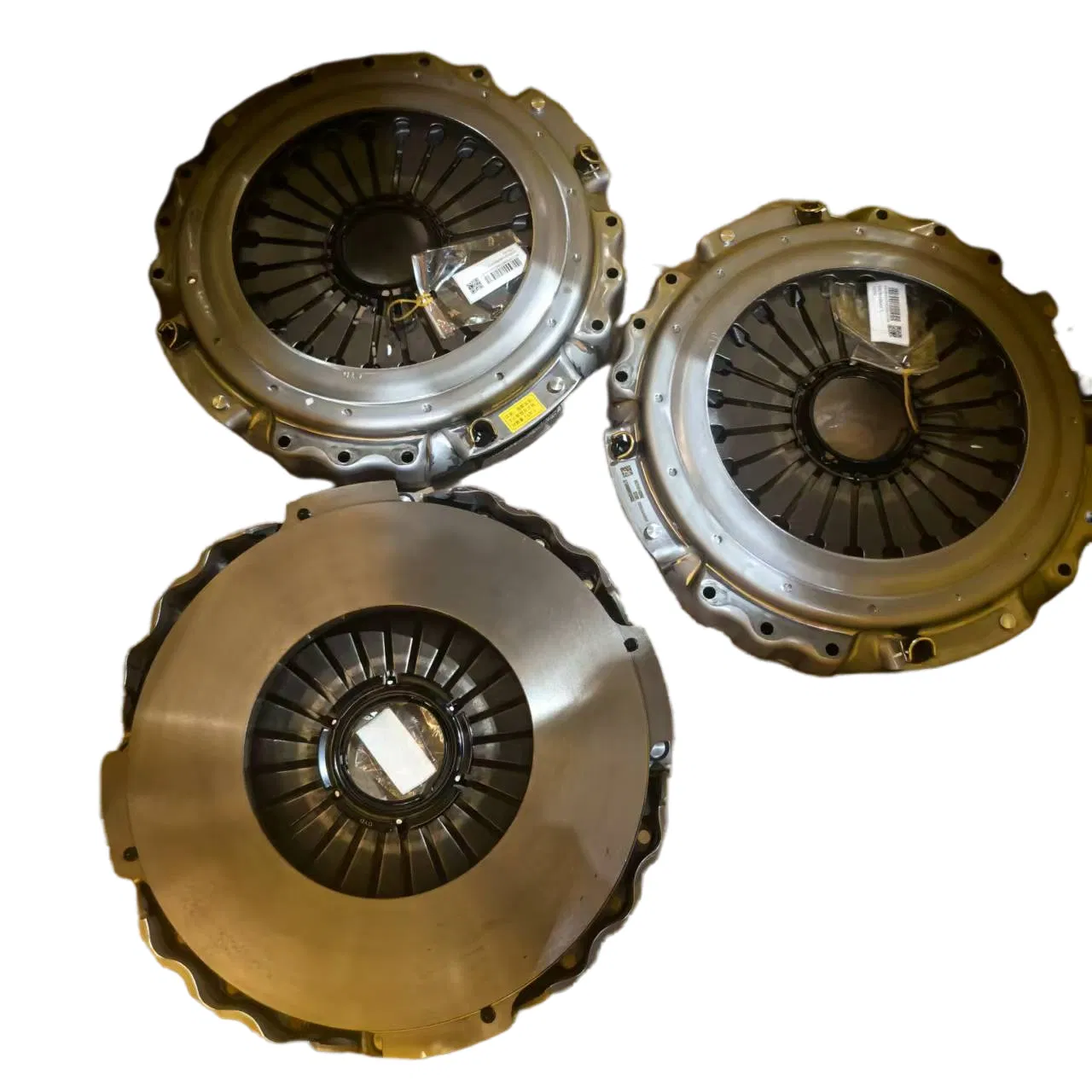

Detailed Product Photos

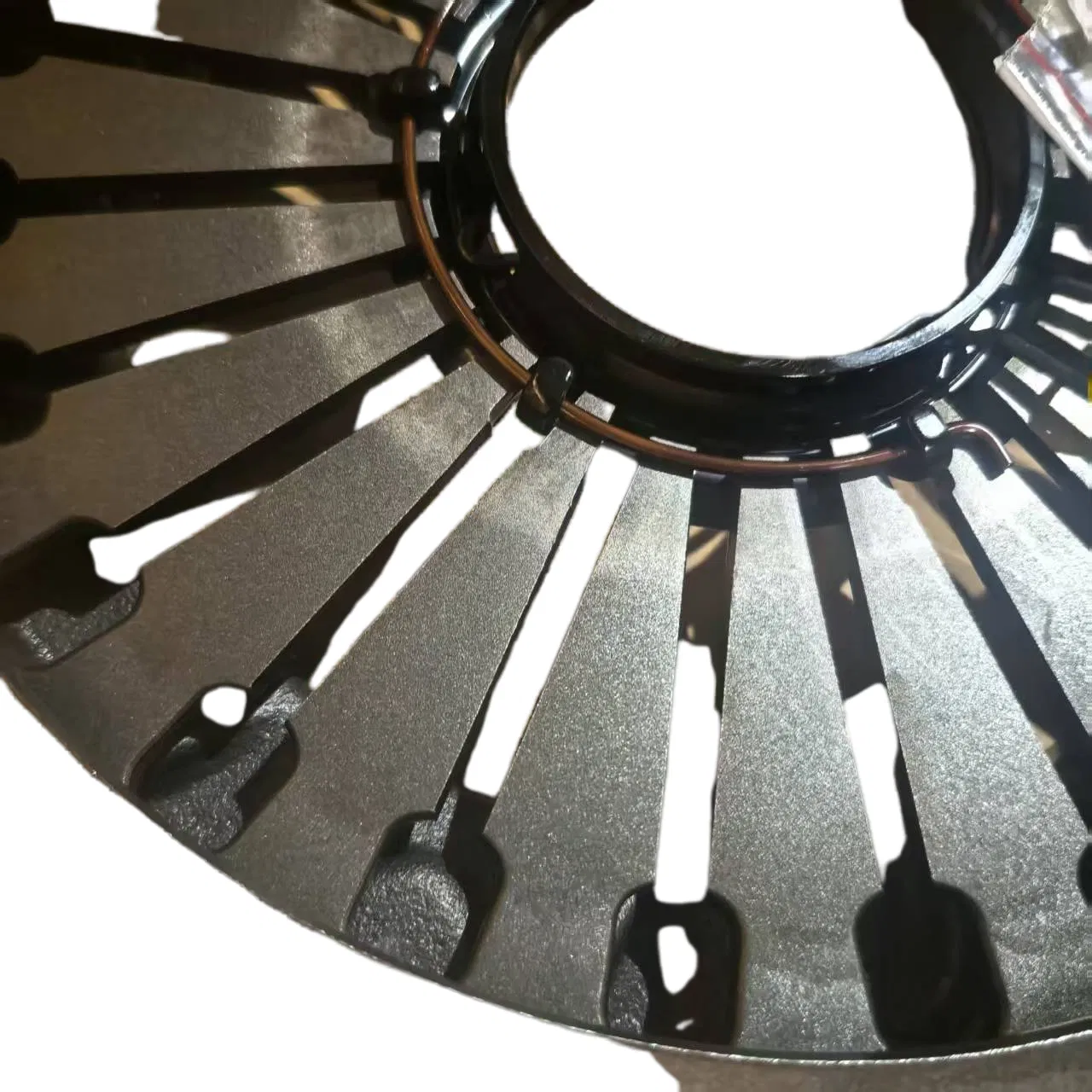

Key Features: Higher lever ratio and larger lift stroke. Diaphragm springs from premium suppliers (Baosteel/Wells) with core heat treatment enduring 2 million cycles.

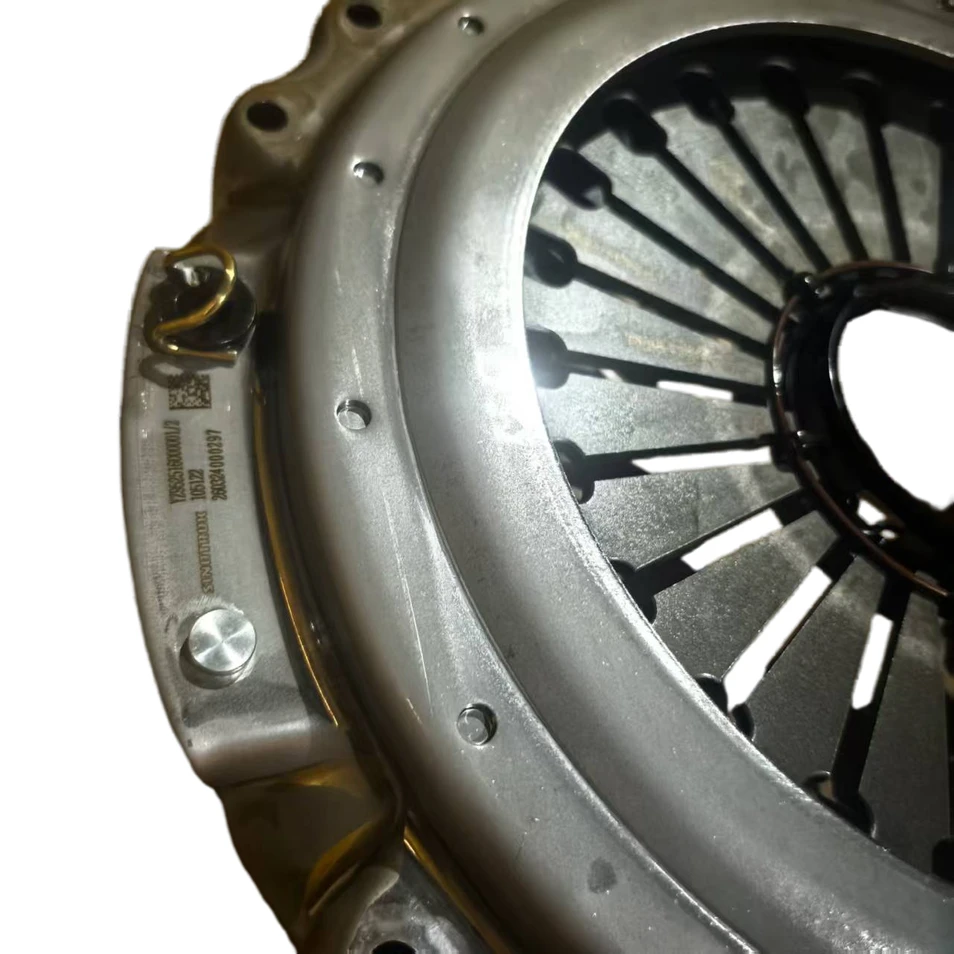

Technical Focus: HT250 cast iron pressure plate with heat dissipation ribs. SPHE clutch cover with lower deflection for better clamping force.

🔬

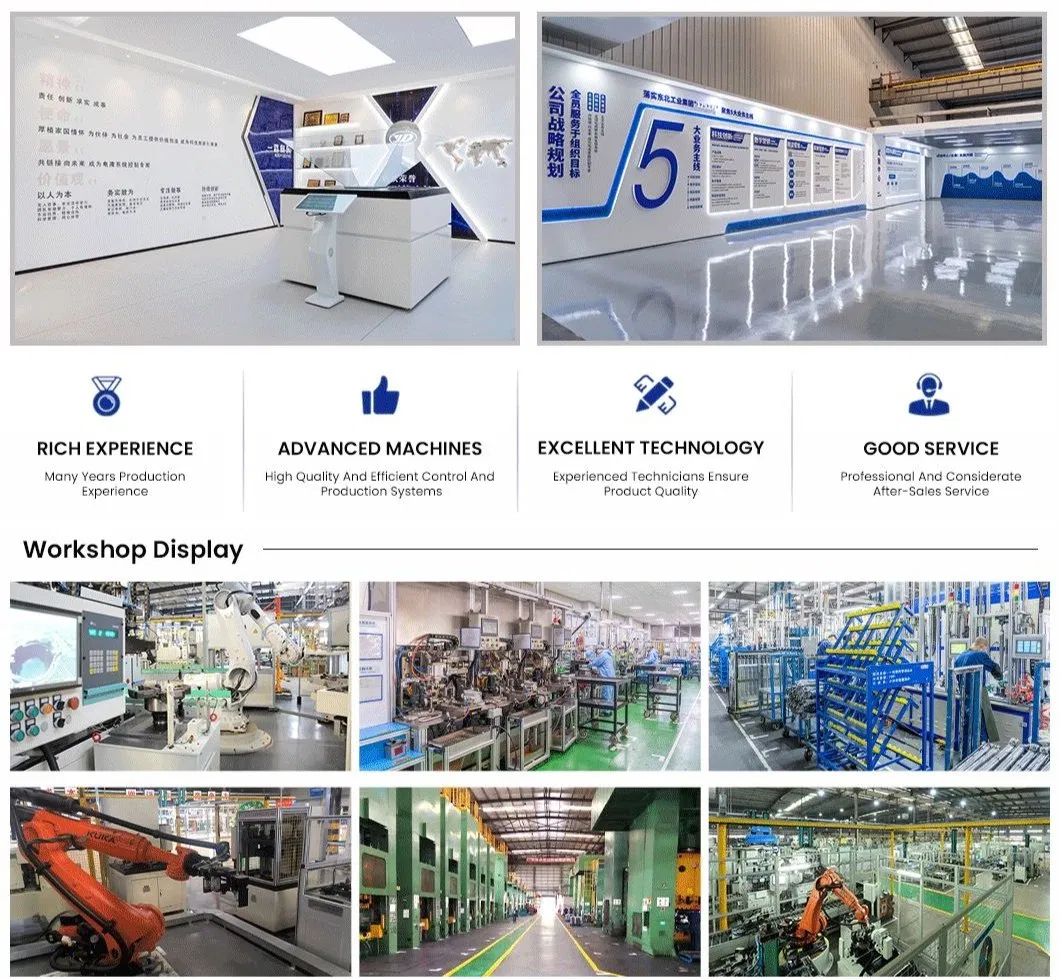

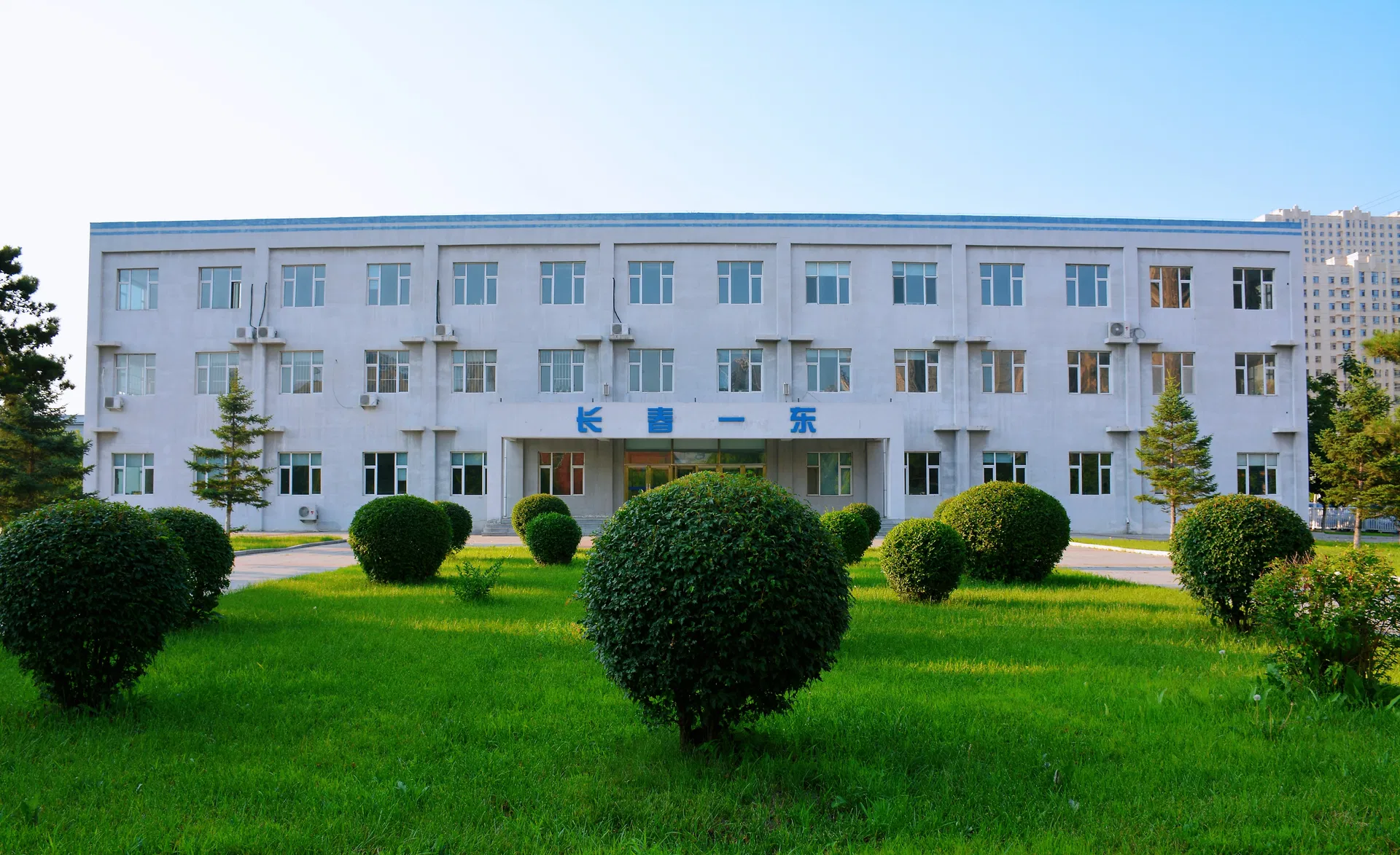

R&D and Quality Testing

Manufacturing & Design

Equipped with a national tech center and CNAS-certified labs. Capabilities include 3D design, PLM, MES, MATLAB Simulink optimization, and advanced simulation (CAE, ANSYS, ABAQUS).
