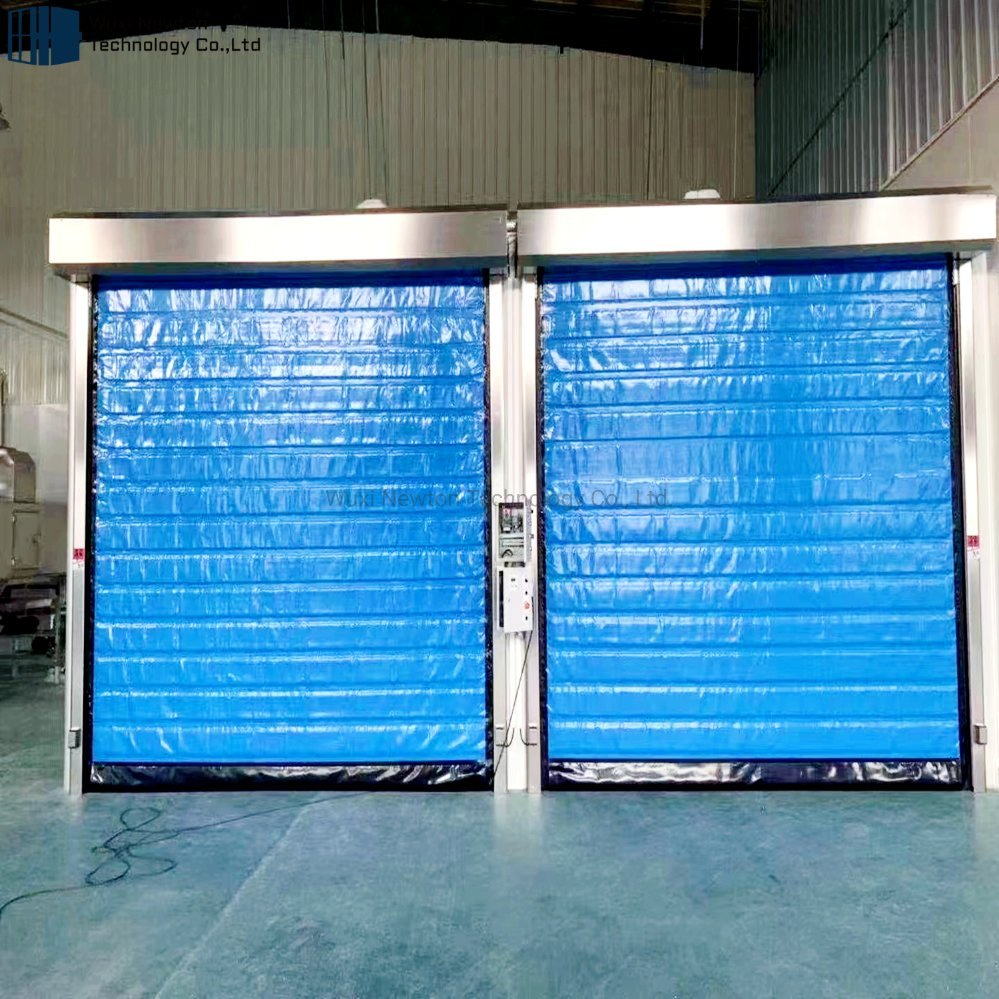

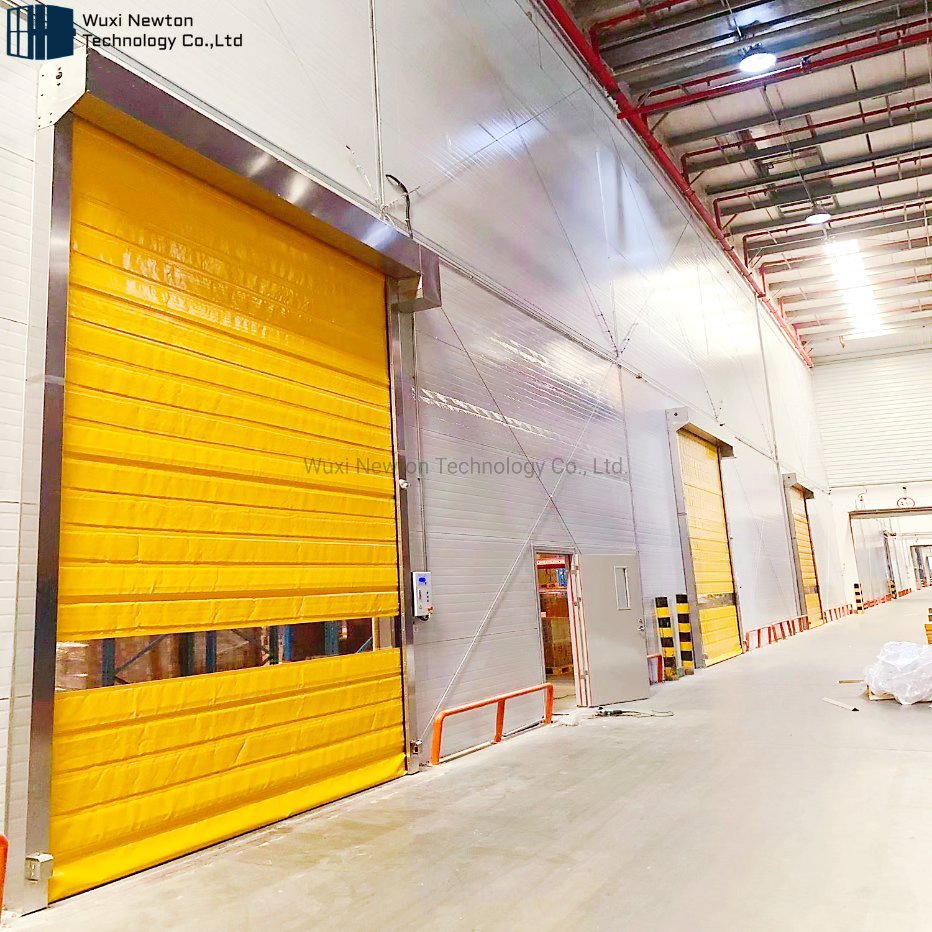

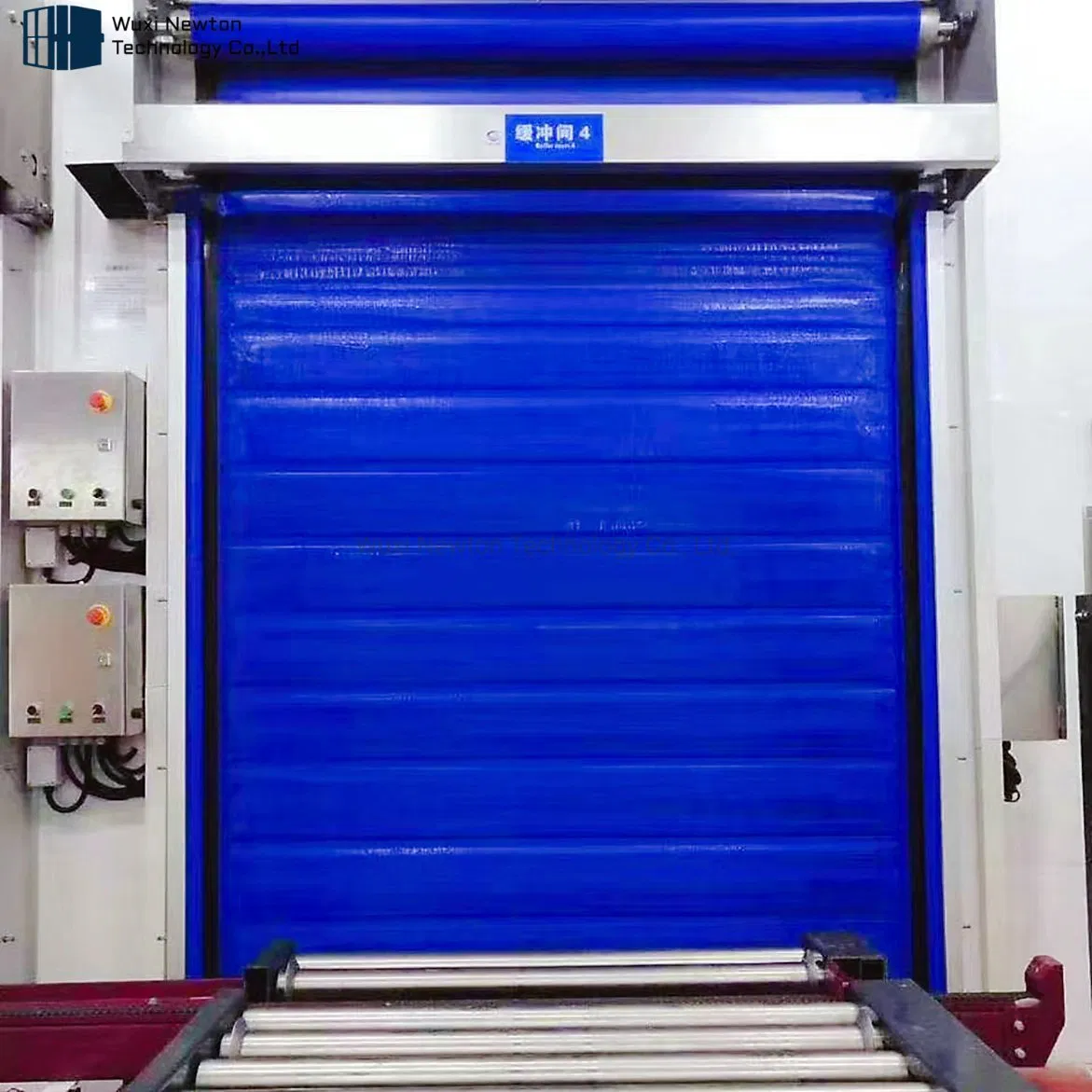

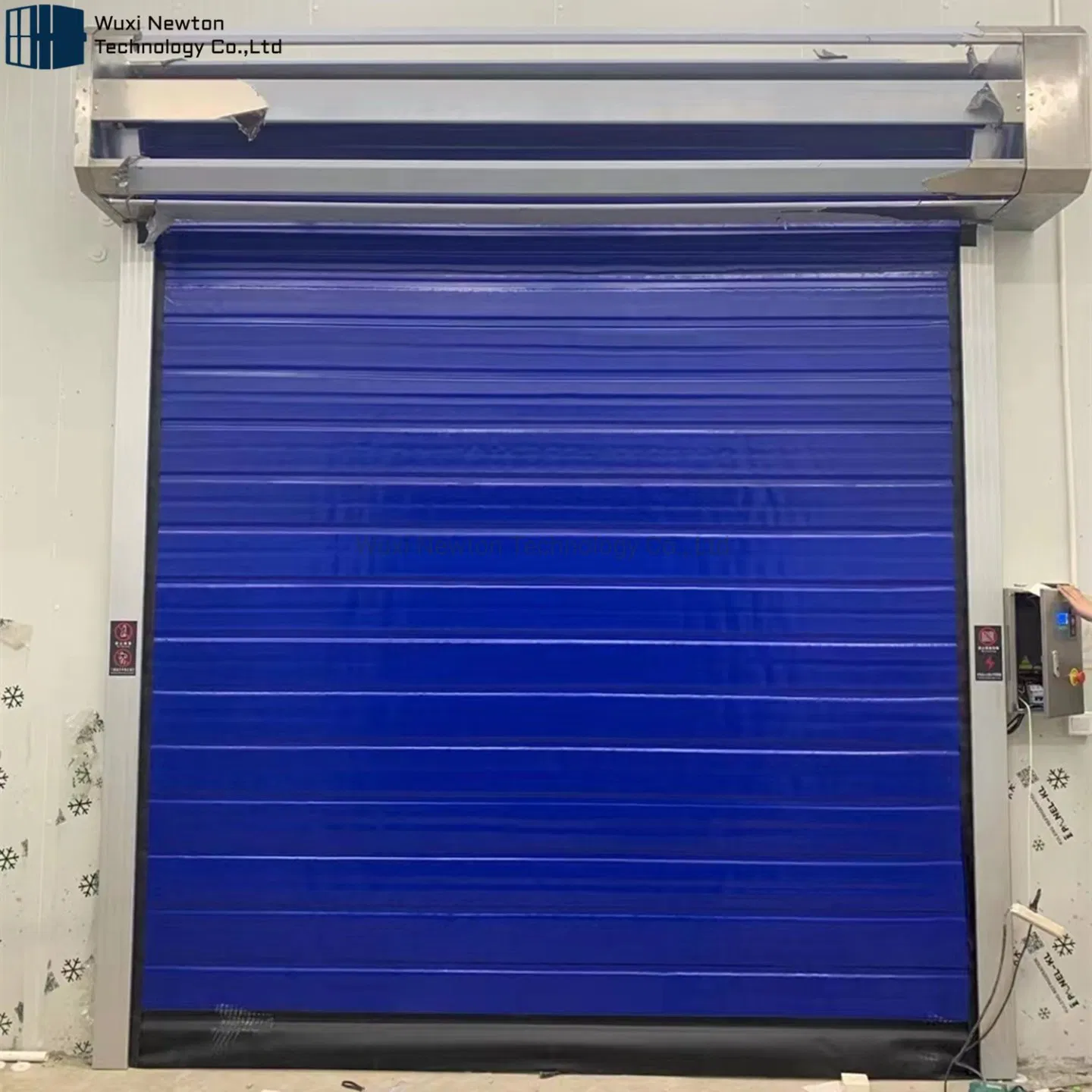

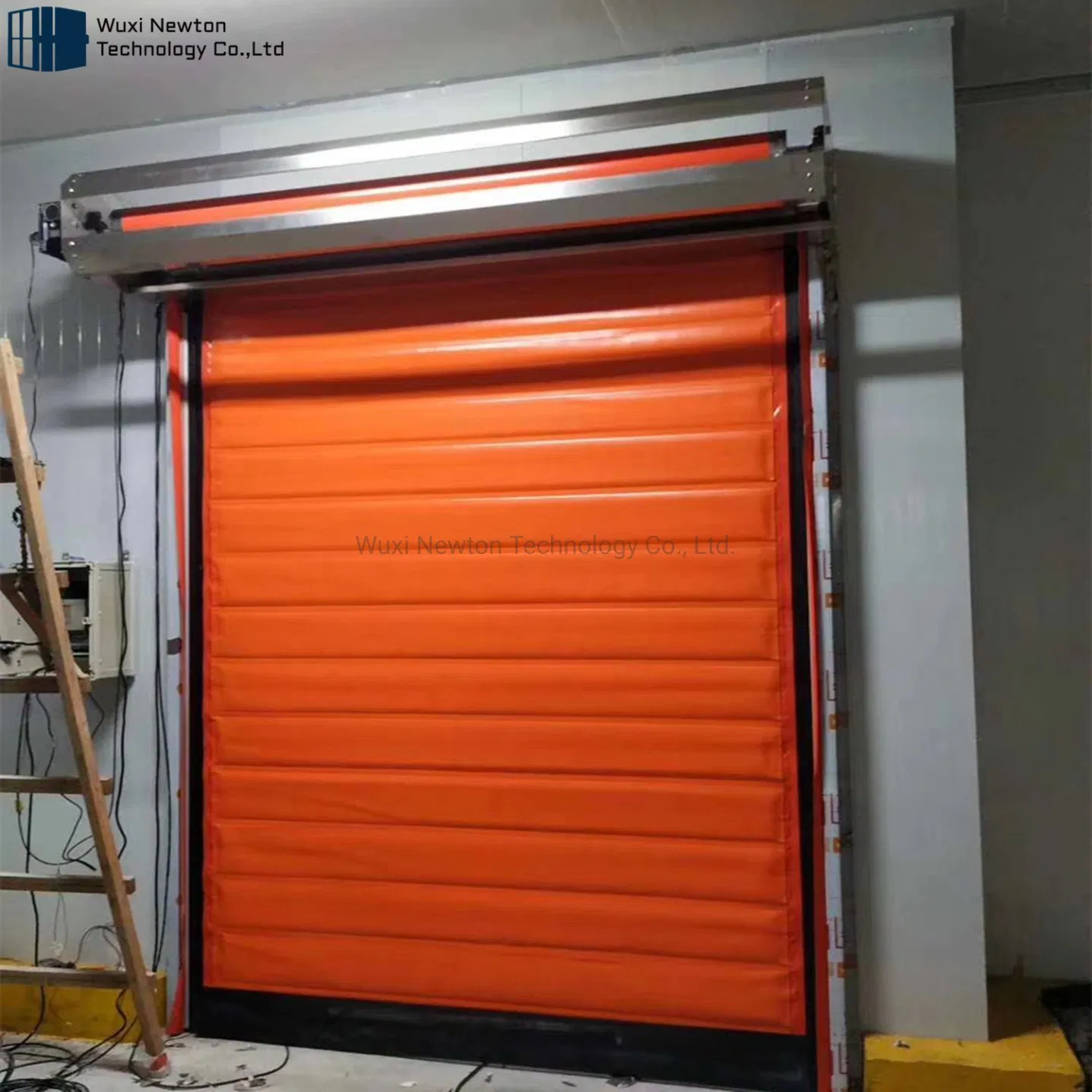

Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse
Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse
Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse
Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse
Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse
1 / 5
Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse
Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse
Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse
Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse
Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse

Cold Room Auto Rapid Action Roll up Freezer Door for Constant Temperature Warehouse

Customization: Available
After-sales Service: Available
Warranty: 12 Months
Send Inquiry

Product Description

📊 Basic Information
Model NO.
NTHD
Material
PVC
Application
Freezing Chain Logistics Area
Running Speed
0.6-1.2m/Sec
Wind Resistance
Level 8
Temperature Range
-28 ~ 65 Degree
Curtain Thickness
3mm (Thermal PU Foam)
Frame Material
Stainless Steel 304
Control System
HMI Screen Interface
Certification
ISO9001
🔍 Product Overview

The cold storage thermal insulation zipper door is a specialized energy-saving internal fast door designed for cold chain logistics. It effectively reduces air convection, saves energy, and minimizes noise. Equipped with heating and antifreeze devices, it ensures smooth operation in extremely low-temperature environments.

Freezer Door Overview
⭐ Key Advantages

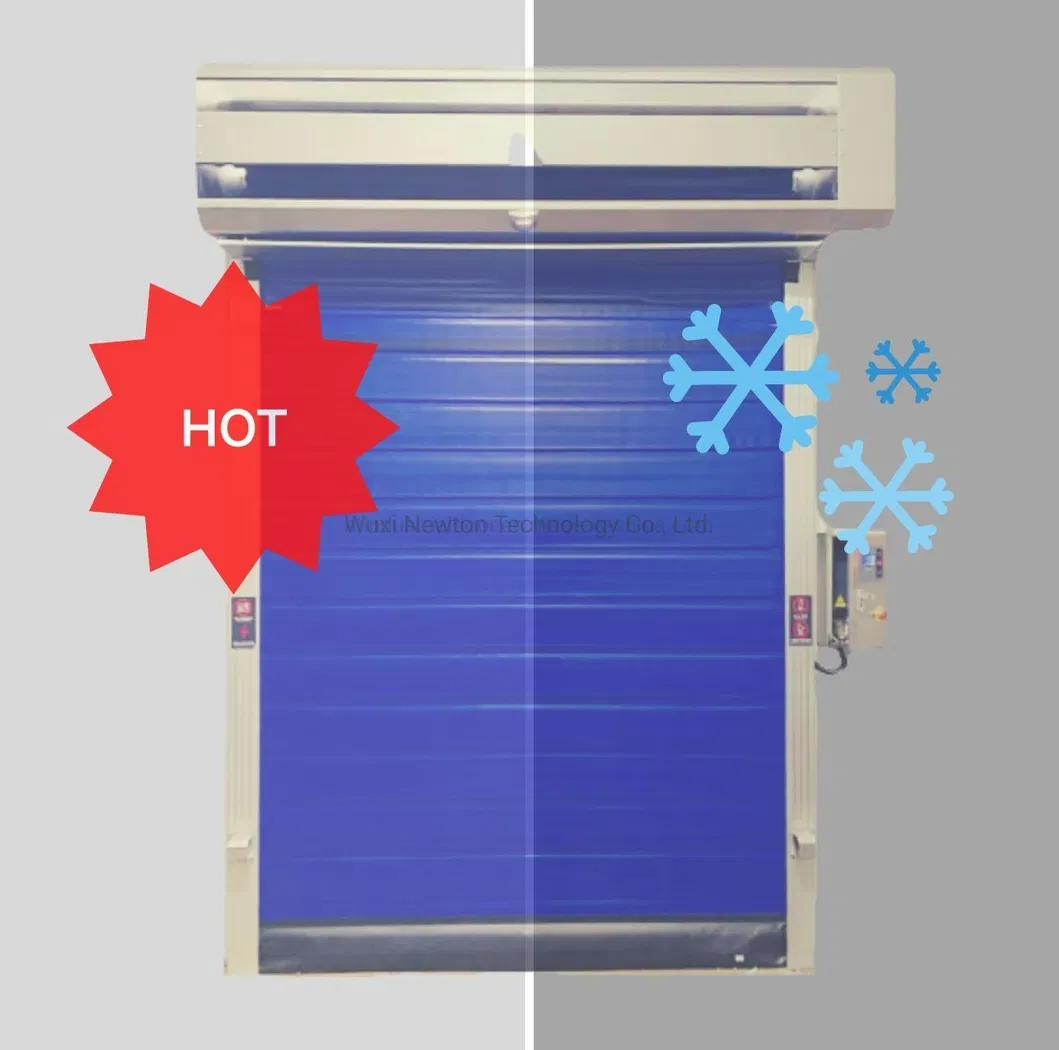

Door Details

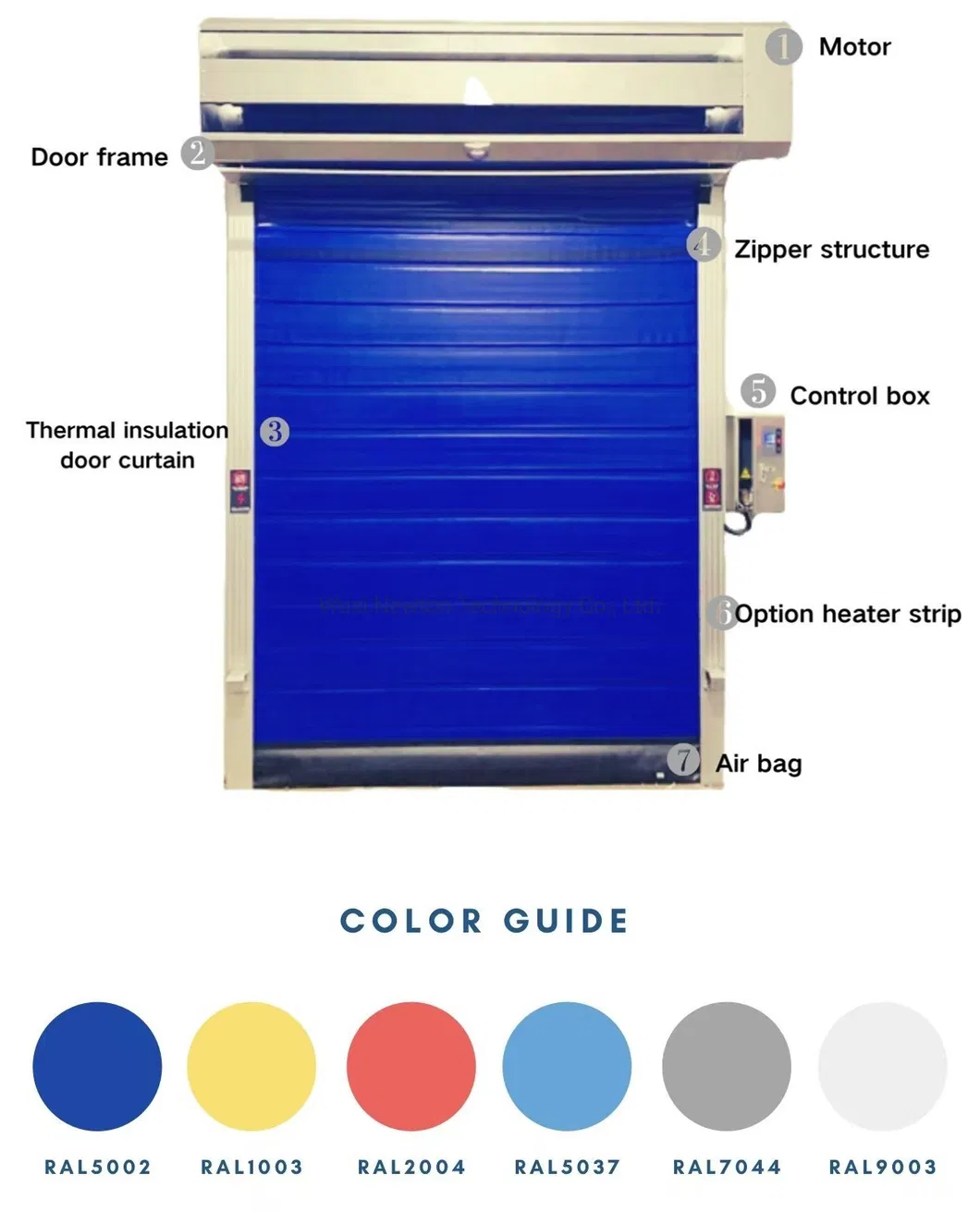

Door Mechanism
  • Superior Thermal Insulation: 3mm curtain with thermal PU foam layer (14mm total thickness after processing).
  • High Air Tightness: Advanced top and bottom seals isolate air pressure convection effectively.
  • Wind Resistance: Reaches National Standard Level 8 through precision-matched guide components.
  • Antifreeze System: Integrated heating mechanism prevents guide rail freezing during frequent operations.
  • Rapid Operation: Opening speeds up to 1.2m/s, fully adjustable for efficiency.
⚙️ Technical Features & Accessories

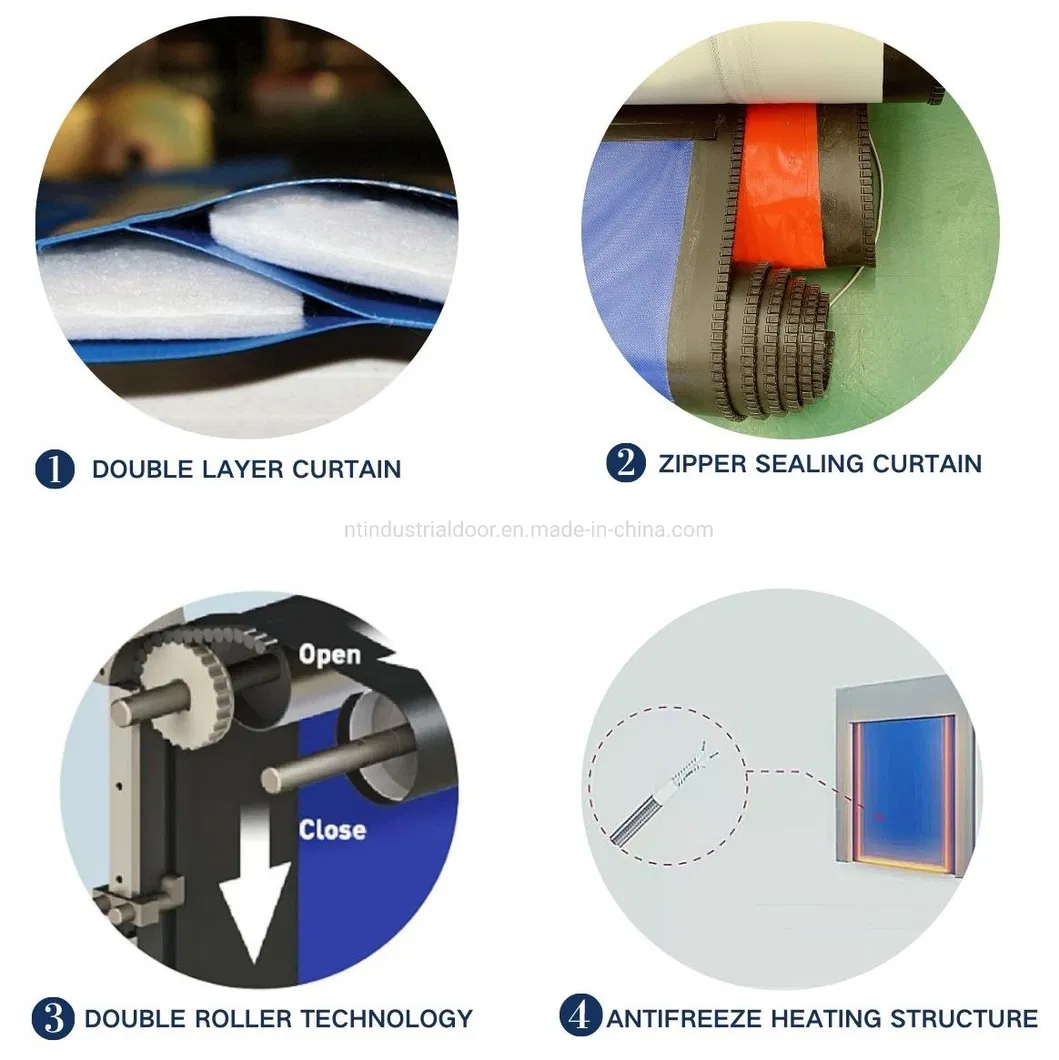

Accessories
  • HMI Interface: Real-time display of door status, run time, and error codes to minimize maintenance costs.
  • Power Failure Memory: Allows manual operation during outages without needing to reset limits after power restoration.
  • Absolute Value Encoder: Multi-turn technology avoids cumulative errors common in traditional incremental encoders.
  • Safety Protection: Includes steering identification to prevent accidents caused by incorrect phase sequence wiring.
  • Closed-loop Modulation: Change running speeds randomly without re-calibrating limits.
Technical Layout

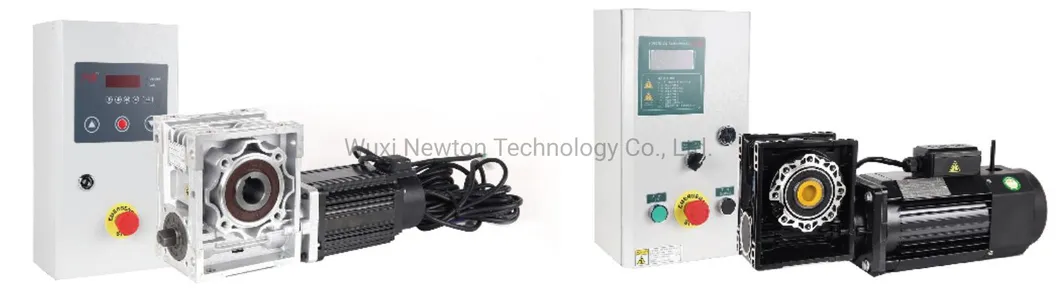

Track System

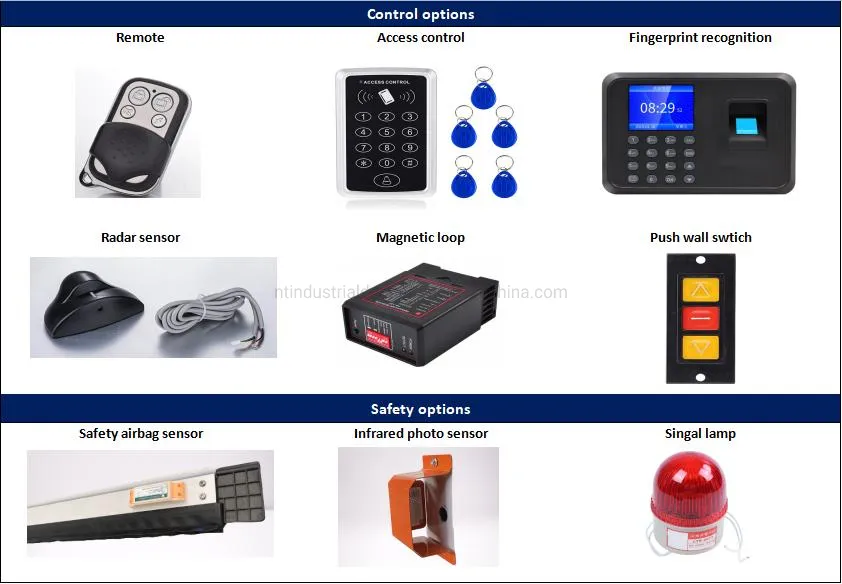

📱 Multiple Opening Methods

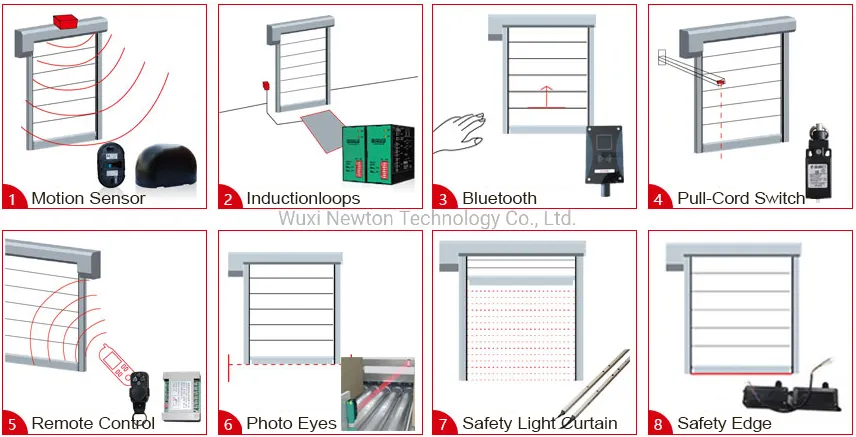

Opening Sensors
• Motion Sensor
• Induction Loops
• Bluetooth
• Pull-cord Switch
• Remote Control
• Photo Eyes / Light Curtain
🛠️ Professional Service & Packaging

Our team provides full-cycle support from design and manufacture to installation and maintenance. We offer customized solutions to optimize costs based on practical demands.

Quality Control

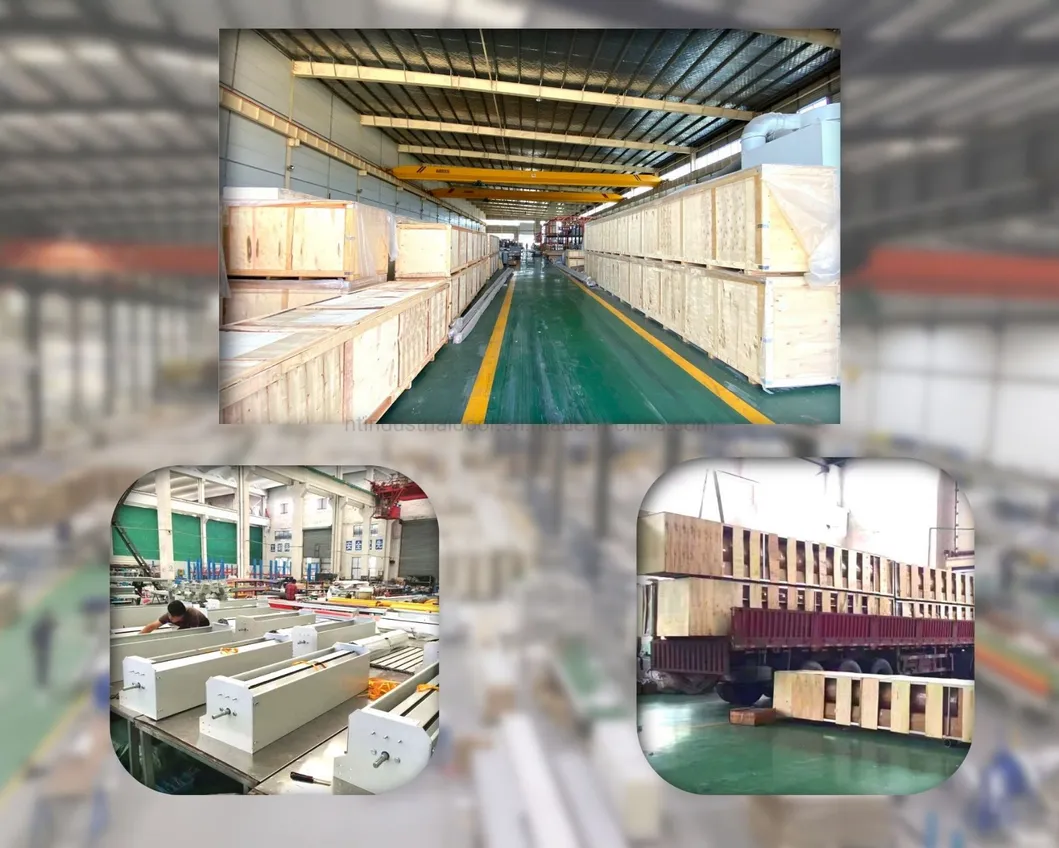

Packaging
Service Support
Service Scope:
  • Pre-shipment and online production inspections.
  • One-year warranty with free accessory supply.
  • Comprehensive installation video support and online guidance.
  • Quick response sales team for timely problem-solving.
❓ Frequently Asked Questions
Q1: What is the lowest temperature this freezer door can handle?
The door is specifically designed for cold storage, operating efficiently in temperatures ranging from -28°C to -1°C, with built-in heating mechanisms to prevent icing.
Q2: How fast does the door open and close?
The maximum opening speed is 0.6-1.2m/s, and the closing speed is no less than 0.6m/s. Both speeds are fully adjustable via the control system.
Q3: What safety features are included?
Standard safety configurations include infrared sensors, pressure airbags, and warning lights. Additional options like safety light curtains and safety edges are also available.
Q4: Does the door lose its position limit after a power failure?
No. Thanks to the full-range absolute value encoder technology and power failure memory function, the door maintains its limit settings even if operated manually while the power is off.
Q5: What are the material specifications for the frame and track?
The door frame is constructed from high-quality Stainless Steel 304, and the tracks are made from specialized polymer materials for high wear resistance and smooth operation.
Q6: How is the door packaged for international shipping?
We use qualified plywood cases for LCL (Less than Container Load) shipments and qualified cartons or pallets for FCL (Full Container Load) to ensure seaworthy protection.
