Flame Retardant Rubber Conveyor Belt DIN-K for Coal Mining, Wear Resistance Rubber Conveyor Belt for Crushers

1 / 5

Flame Retardant Rubber Conveyor Belt DIN-K for Coal Mining, Wear Resistance Rubber Conveyor Belt for Crushers

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

EP100-1400

Inside Material

Polyester

Feature

Oil-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant

Tensile Strength

Strong

Applications

Coal, Mining, Cement Plant, Power Plant

Rubber Strength

10MPa to 24MPa

Cover Grade

Rma1, Rma2, DIN-W, DIN-X, DIN-Y, DIN-K

Color

Black

Specification

DIN22102/RMA

HS Code

40101200

Packaging & Delivery

Package Size

170.00cm * 150.00cm * 170.00cm

Gross Weight

230.000kg

Transport Package

Poly Bag

Product Description

⭐ Rubber Conveyor Belt Properties

🔥 High strength
🌡️ Heat resistant
🛡️ High resistance to abrasion
📉 Low elongation
💥 Resistant to impact
🚀 Suitable for long distance & high speed

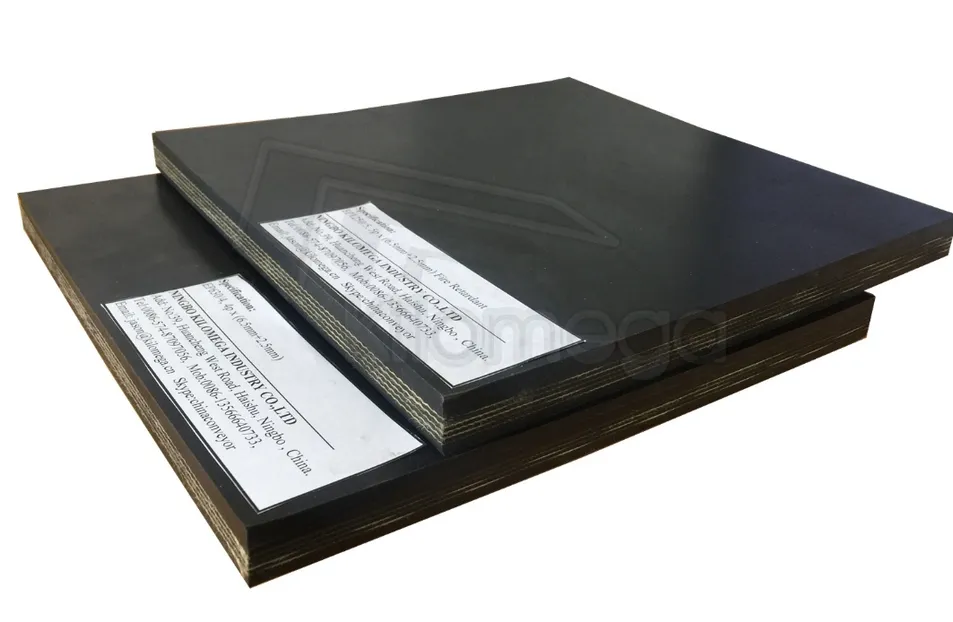

📋 Manufacturing Standards

Complying with global testing benchmarks:

GB/T 28267.1

JISK 6322

AS 1332-2000

SANS 1173:2005

DIN 22102

GB/T 7984-2013

Core Characteristics

Heat Resistance

Cold Resistance

Anti-static

Fire Resistance

Oil Resistance

Abrasion Resistance

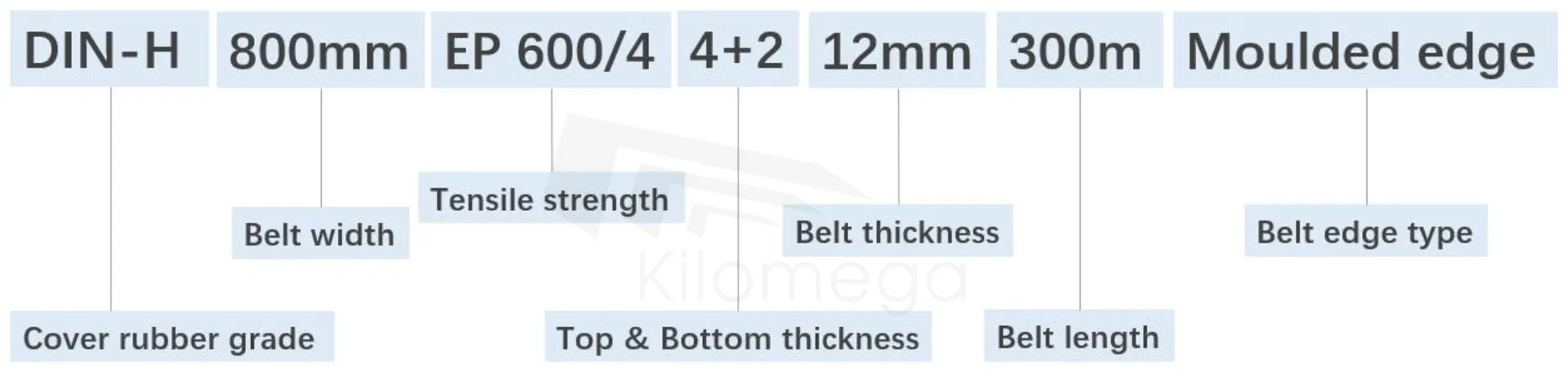

Product Specification

Item	Details
Cover Rubber Grade	8MPA, 10MPA, 12MPA, 15MPA, 18MPA, 20MPA, 24MPA, 26MPA
Thickness (Top+Bottom)	3+1.5, 4+2, 4+1.5, 4+3 mm	3/16"+1/16", 1/4"+1/16"
Belt Thickness	3mm to 25mm options
Belt Width	500mm to 2500mm	18" to 94"
Tensile Strength	EP315/3, EP400/3, EP500/4, EP600/4, EP1000/5, EP1200/6 etc.

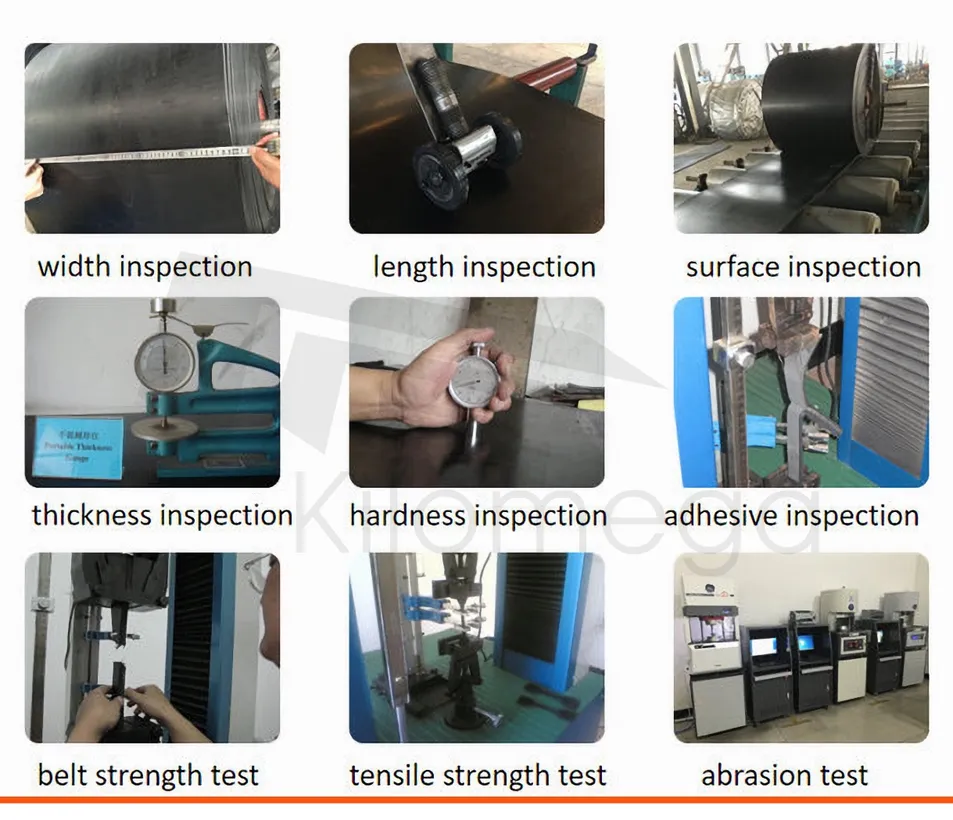

Quality Control & Advantages

🎯 Product Selection: Industry expertise to assist customers in choosing the most suitable product.

✅ Quality Guarantee: 100% factory inspection with perfect testing equipment.

🛠️ Technical Support: Ensuring products meet complex usage requirements to reduce downtime and extend service life.

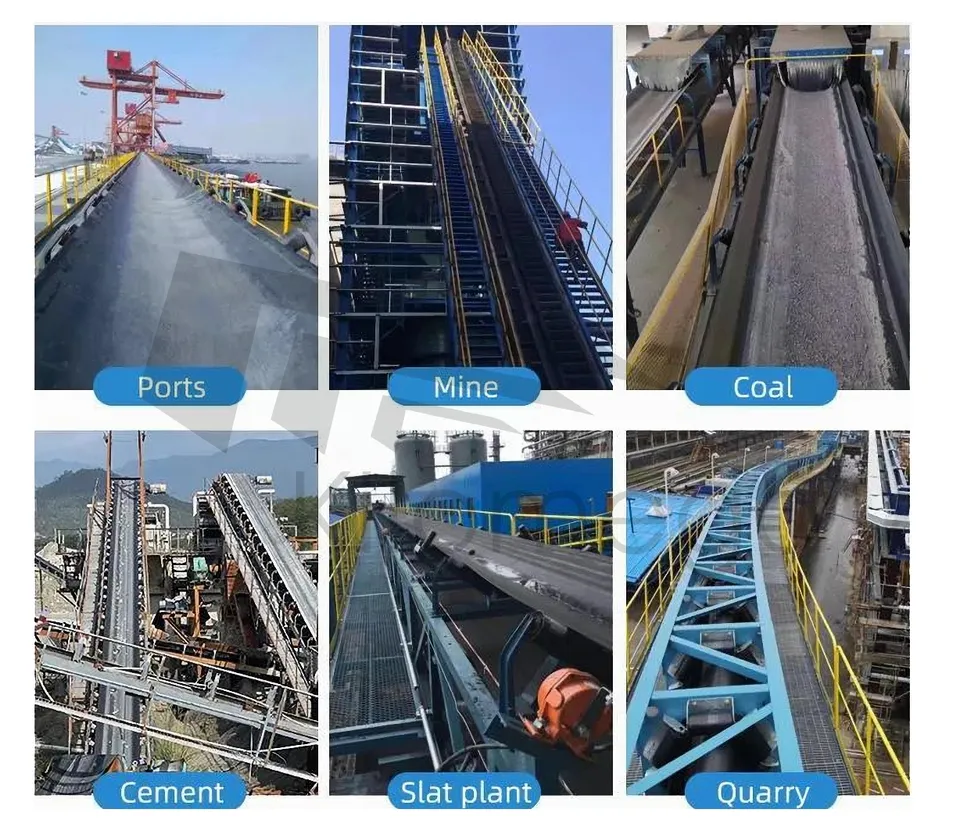

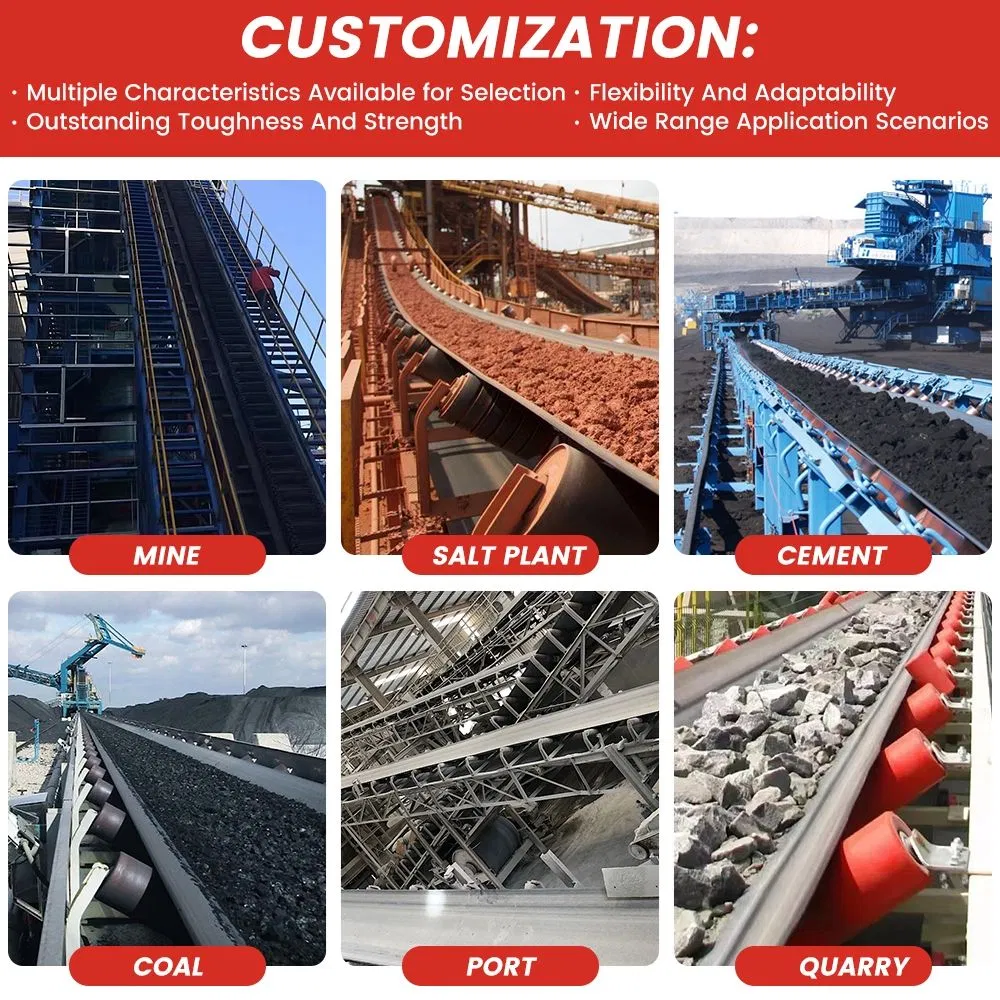

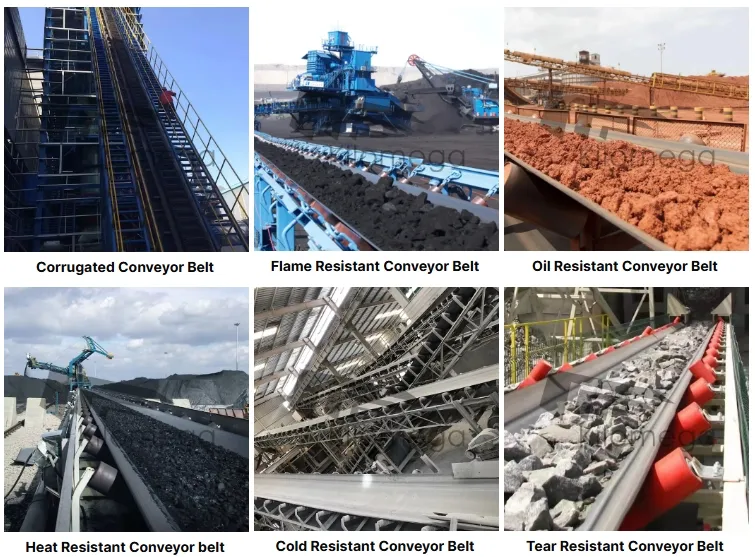

Application Scenarios

Rubber conveyor belts are essential for efficient material transportation in various sectors:

Mining Industry: Coal and ore transport.
Logistics: Port loading and unloading.
Heavy Industry: Steel and cement plants.
Agriculture: Crop processing.
Construction: Building materials and crushers.

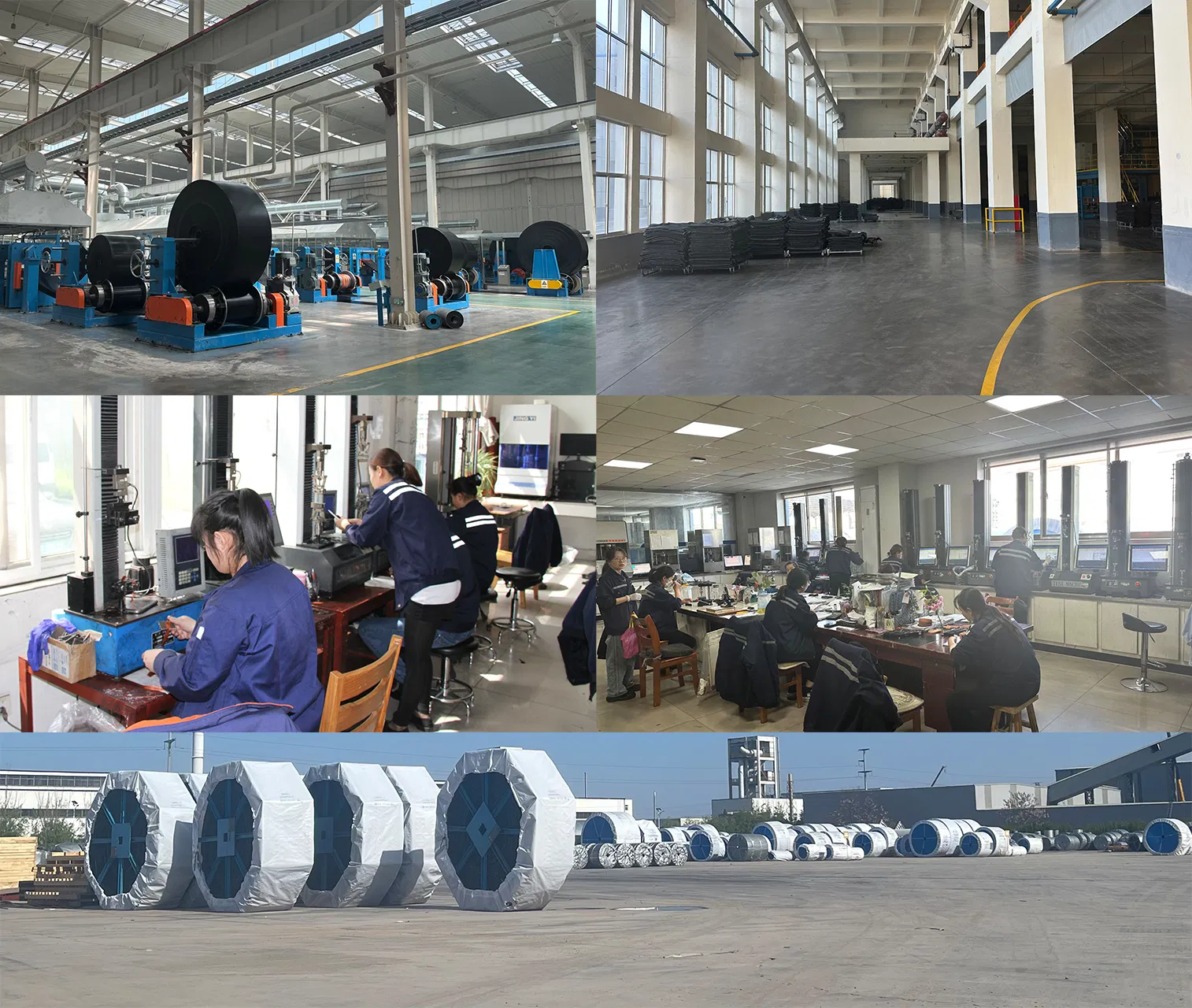

Manufacturing Showcase

Frequently Asked Questions

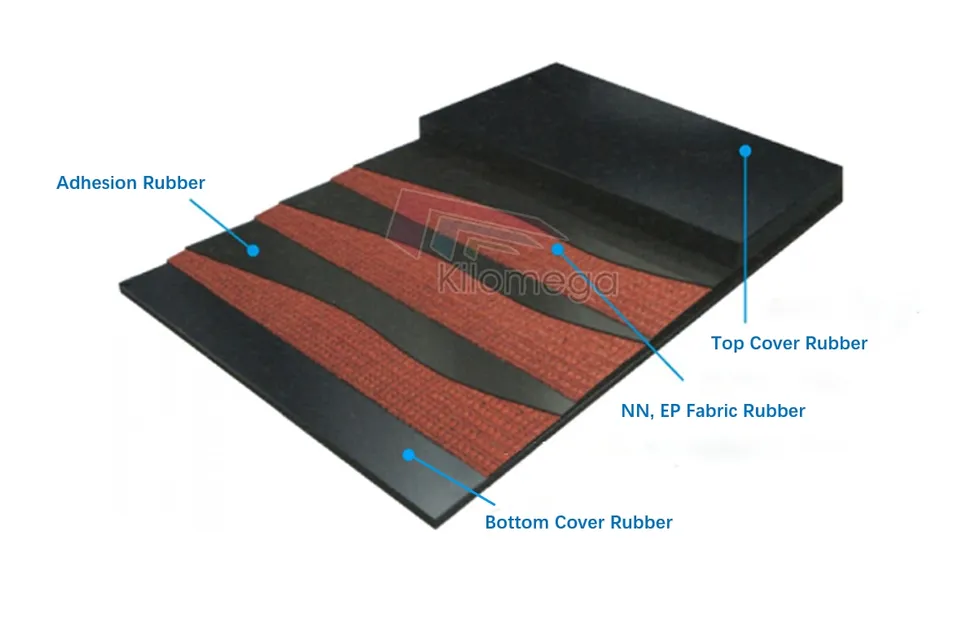

What is the primary material used in the belt's carcass?

The belts primarily use high-quality Polyester (EP) as the internal material, providing excellent strength and low elongation properties.

Which international standards do your conveyor belts meet?

Our products are manufactured and tested according to DIN 22102, RMA, JISK 6322, AS 1332-2000, and GB/T 7984 standards.

Can these belts handle extreme environments?

Yes, we offer specialized grades for heat-resistant, cold-resistant, oil-resistant, and flame-retardant (DIN-K) requirements, making them suitable for mining and chemical plants.

What width and thickness options are available?

We offer widths ranging from 500mm to 2500mm and thicknesses from 3mm up to 25mm, with customizable top and bottom cover ratios.

Are the edges of the belts sealed?

We provide both moulded (sealed) edge and cut edge options depending on your specific operational needs and conveyor structure.

What are the main advantages of these conveyor belts?

Our belts offer high tensile strength, excellent abrasion resistance, impact resistance, and long service life, which helps in reducing downtime and repair costs.
