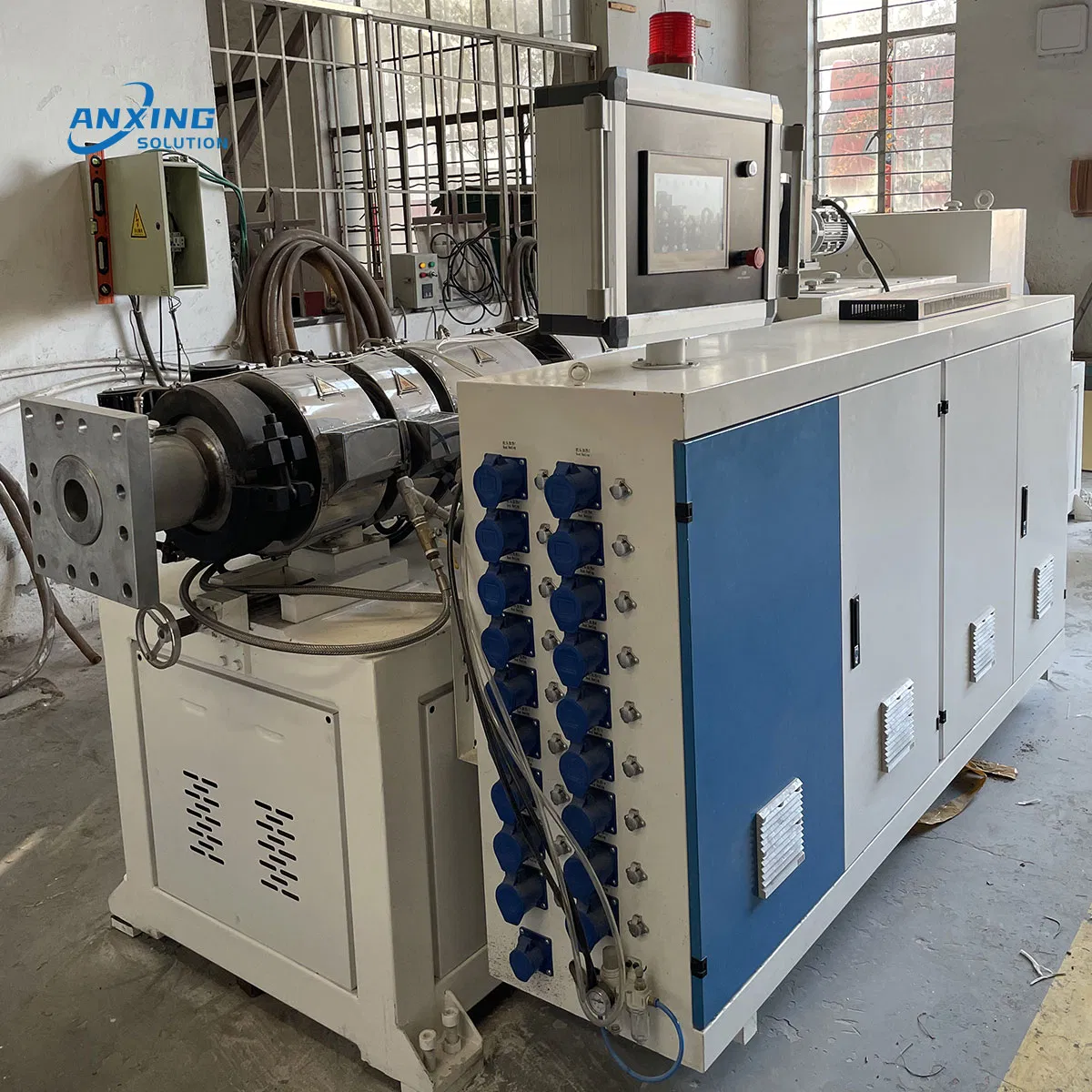

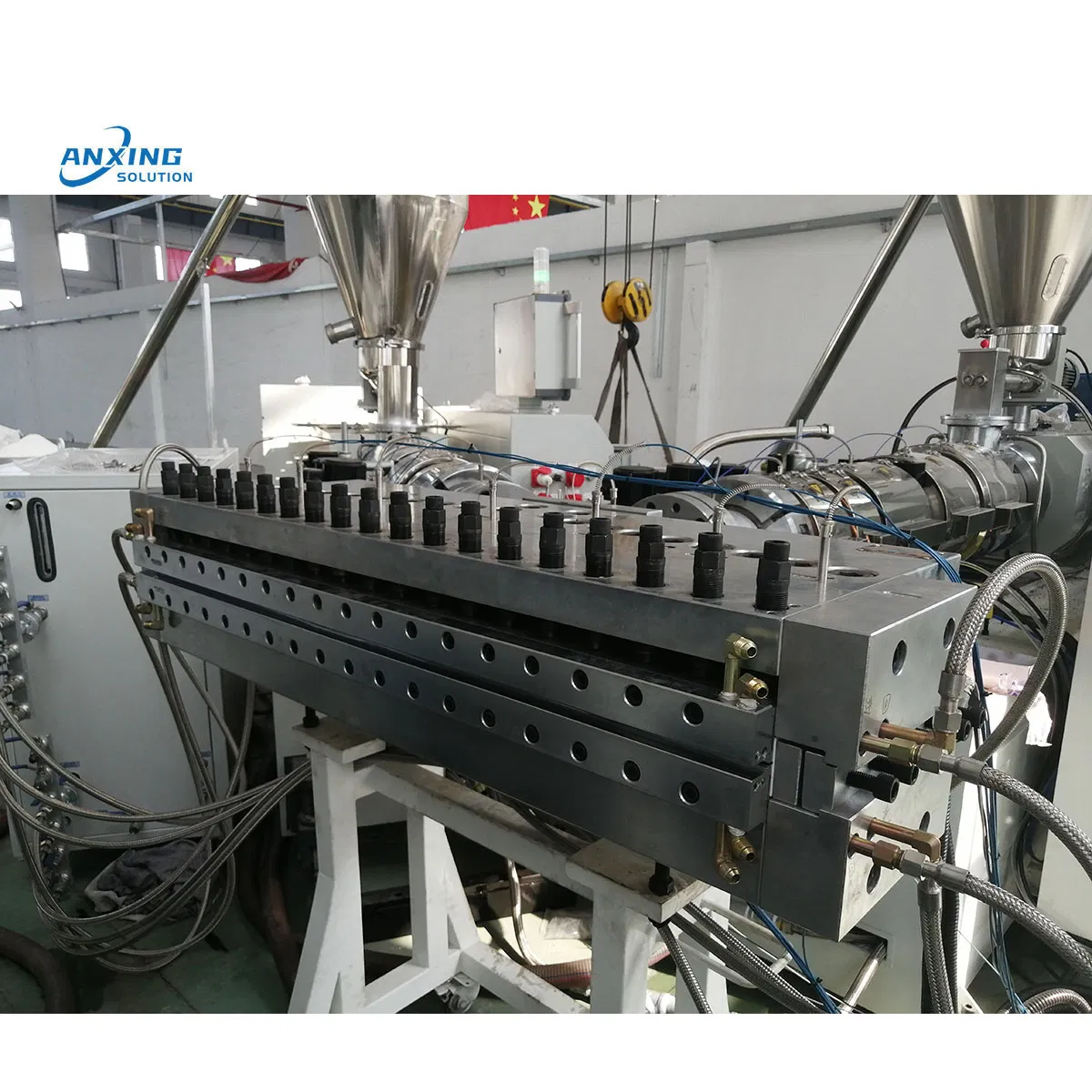

WPC Foam Board Making Machine China Foaming Board Extrusion Line

1 / 5

WPC Foam Board Making Machine China Foaming Board Extrusion Line

Customization:	Available
After-sales Service:	Experienced PVC Foam Board Extrusion Machine
Warranty:	1 Year for PVC Foam Board Extrusion Machine

Send Inquiry

Product Description

📊 Basic Information & Specification

Model NO.

80/156

Product Type

PVC Board

Board Layers

Multilayer

Screw No.

Double-screw

Automation

Automatic

Computerized

Certification

Machine Color

Customized

Operator

3-4 Labors

Mould

3cr17

HS Code

84778000

Capacity

1 sets/Week

⚙️ Product Description

Professional Plastic PVC extruder machinery supplier with 20 years of experience in plastic machinery.

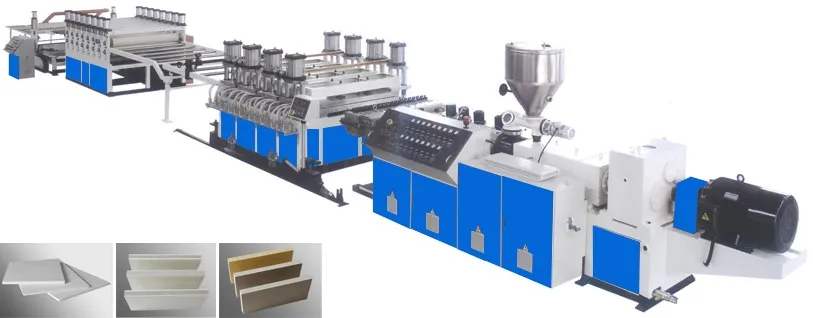

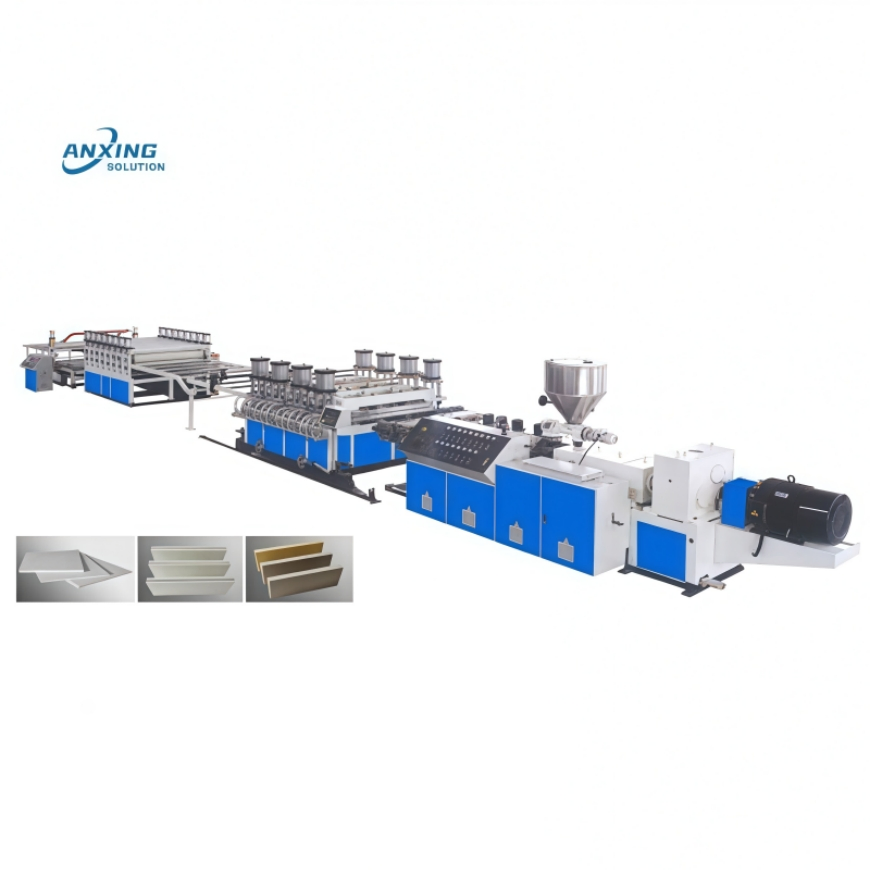

PVC foam board making machine is applied to produce PVC foam board with a width of 1220mm and length of 2440mm, with thickness mostly ranging from 3 to 30 mm. The surface of PVC foam board is generally treated by hot stamping or lamination, then coated by UV varnish. After coating UV glossy varnish, the surface of PVC foam board becomes smoother and more wearable.

Applications: Widely used in hotels, office buildings, supermarkets, KTV, massage clubs, and other public areas.

Core Features:

✔ Waterproof, flame retardant, and moistureproof.

✔ Anticorrosive, mothproof, and light weight.

✔ Sound insulation, heat insulation, and anti-earthquake.

✔ Resists radiation and aging.

✔ Processable by ordinary wood tools (drilled, sawed, nailed).

✔ Weldable to other PVC materials.

📋 Technical Parameters

Model	SJSZ80/156	SJSZ92/188	SJSZ92-188 (High Cap)
Production Width	915/1220mm	1560mm	2050mm
Production Thickness	5-20mm	8-18mm	8-15mm
Capacity (Max)	400kg/h	550kg/h	550kg/h
Main Motor Power	75kw	132kw	132kw

🌟 Our Advantages

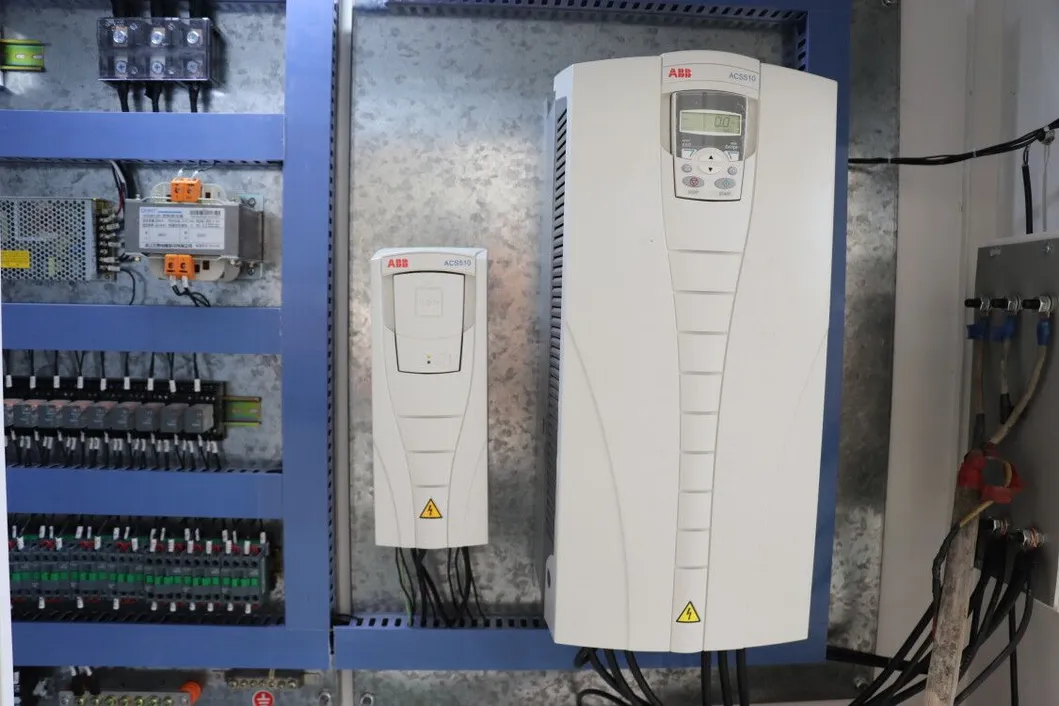

💎 ABB Inverter: World famous brand, stable and reliable.

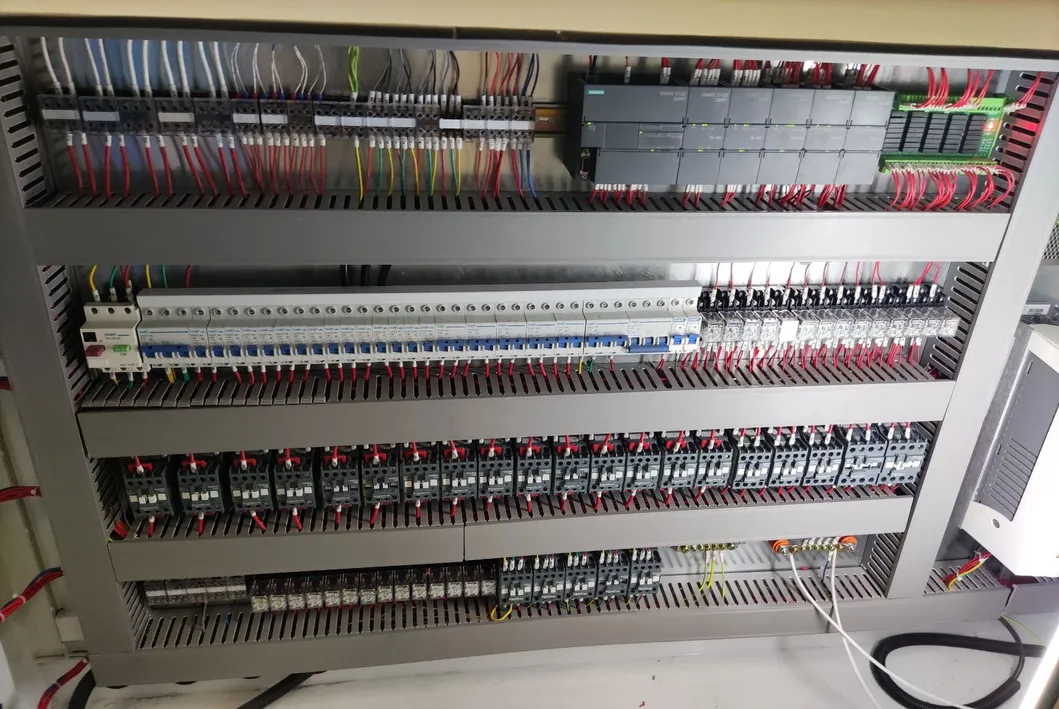

💎 Schneider Contactor: Reliable performance components.

💎 Omron Controller: Precision temperature control, durable.

💎 Energy Saving: Minimum consumption is 25kw/hour (saves 25-30%).

💎 High Speed: Double output compared to common machines.

💎 Advanced Control: PID temperature control & Infrared tracking.

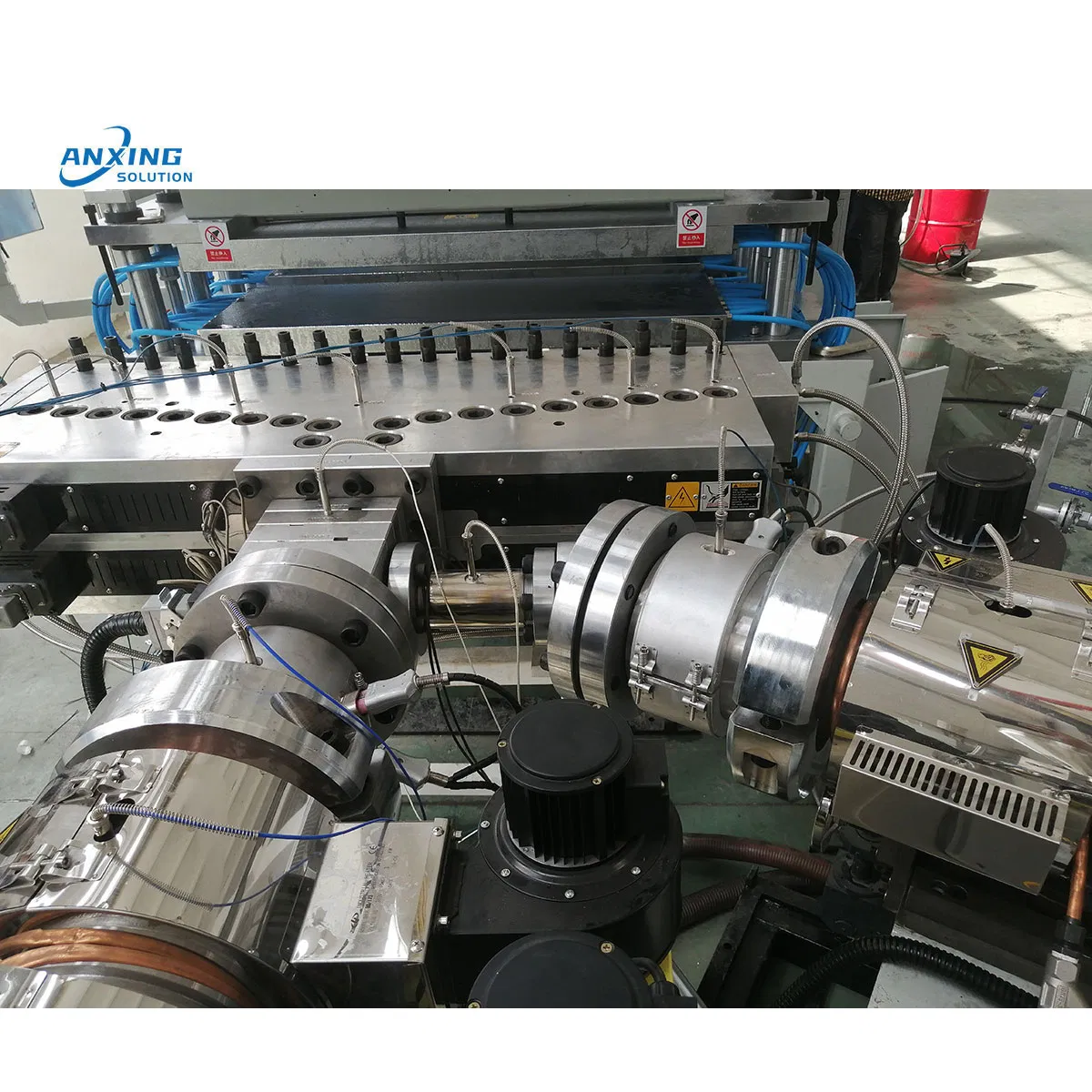

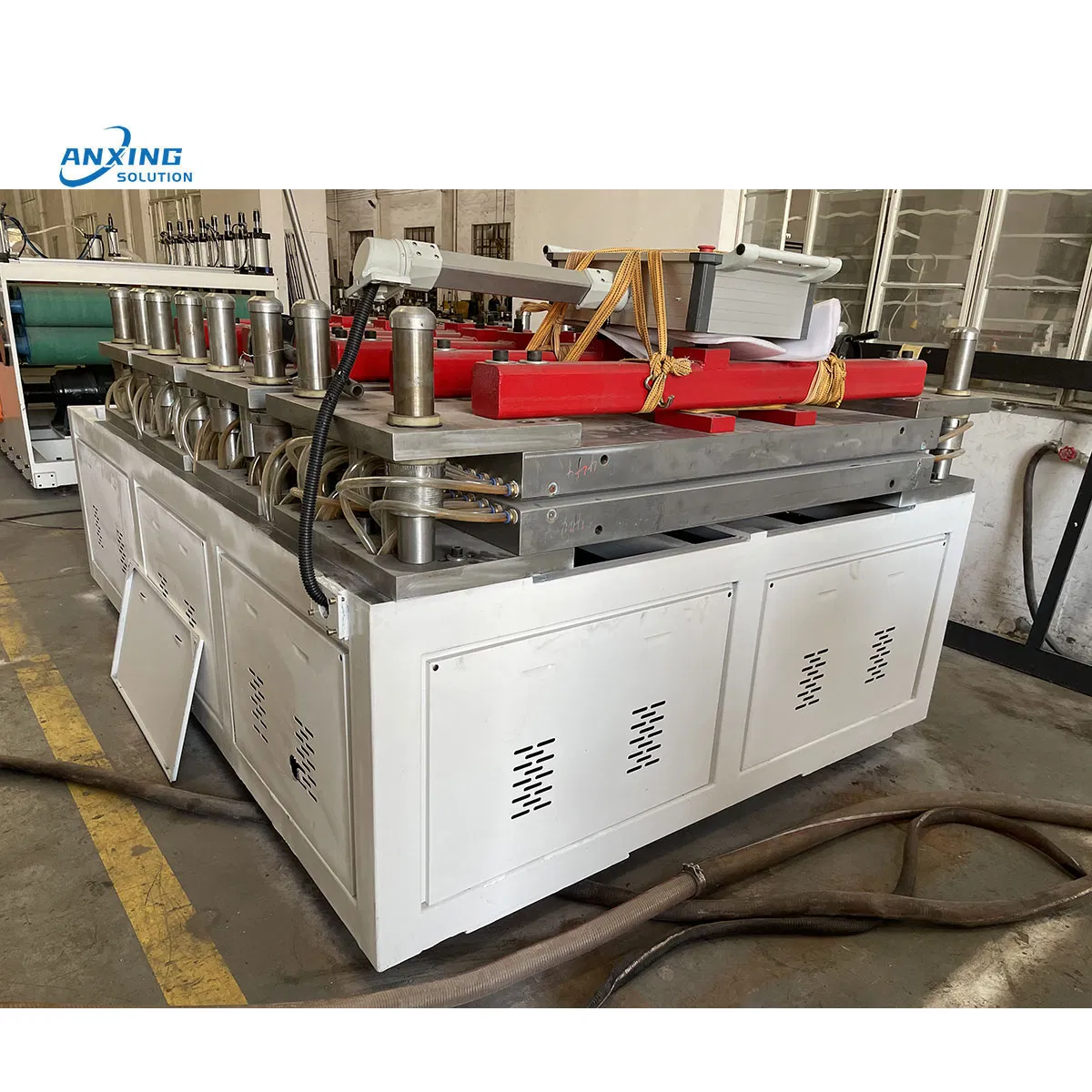

📸 Machine Details & Components

❓ Frequently Asked Questions

What types of products can this extrusion line produce?

The machine is designed for PVC and WPC foam boards, commonly used for ceiling panels, wall panels, and furniture boards with widths up to 2050mm.

How does the machine ensure production quality?

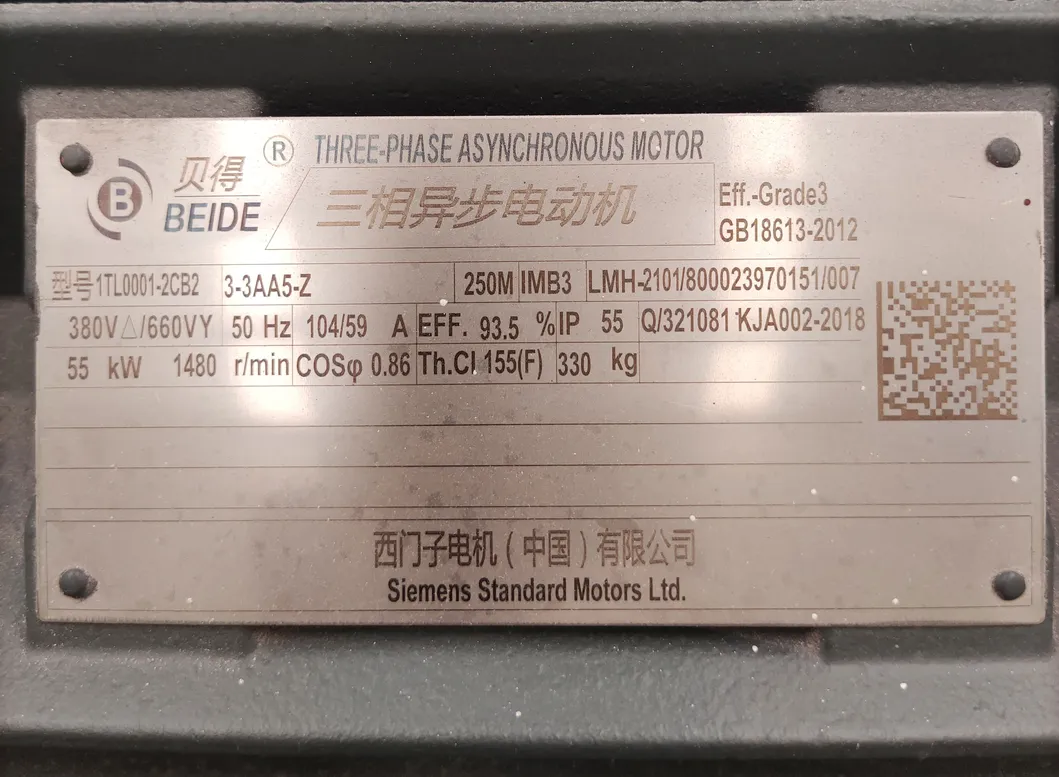

Quality is guaranteed through the use of world-class components like ABB inverters, Siemens motors, and Omron temperature controllers, along with PID self-adjusting systems.

Is the machine energy efficient?

Yes, our extrusion line features a low power consumption design, saving approximately 25-30% electrical power compared to standard production lines.

What is the production capacity of the SJSZ92/188 model?

The SJSZ92/188 model offers a high capacity of up to 550kg/h, which is significantly higher than common foam board making machines.

Can the machine handle high filler ratios?

Yes, the extruder can handle CaCO3 filler up to 300phr, which helps in greatly reducing the formula cost for the manufacturer.

What services are provided for international buyers?

We support various delivery terms (FOB, CFR, CIF, EXW, DDP) and multiple payment methods. Professional guidance on PVC extrusion projects is also available.
