WPC PVC Louver Panel Making Machine Extrusion Line for WPC Fluted Wall Panel Production Line

Customization:	Available
After-sales Service:	Professional WPC Louver Panel Making Machine
Warranty:	1 Year for WPC Louver Panel Making Machine

Send Inquiry

Product Description

Basic Information

Model NO.

65/132

Product Type

PVC Board

Board Layers

Single Plate

Screw No.

Double-screw

Automation

Automatic

Computerized

Certification

Condition

New

Diameter

16-800mm

Operator

3-4 Labors

Calibration Table

6m, 8m, 10m

Production Capacity

10sets/Week

Packaging & Delivery

Package Size

450.00cm * 150.00cm * 270.00cm

Gross Weight

3500.000kg

Product Description

Professional Plastic PVC panel machinery supplier with 20 years of experience in plastic machinery extrusion lines.

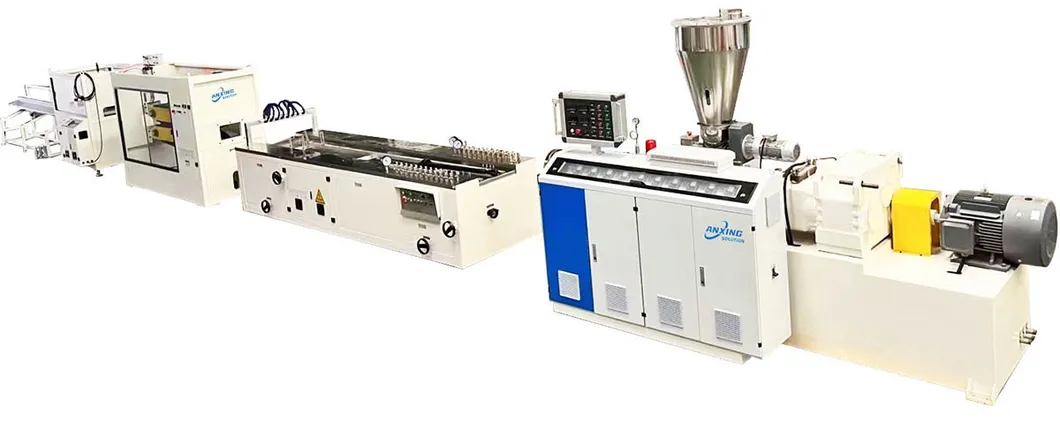

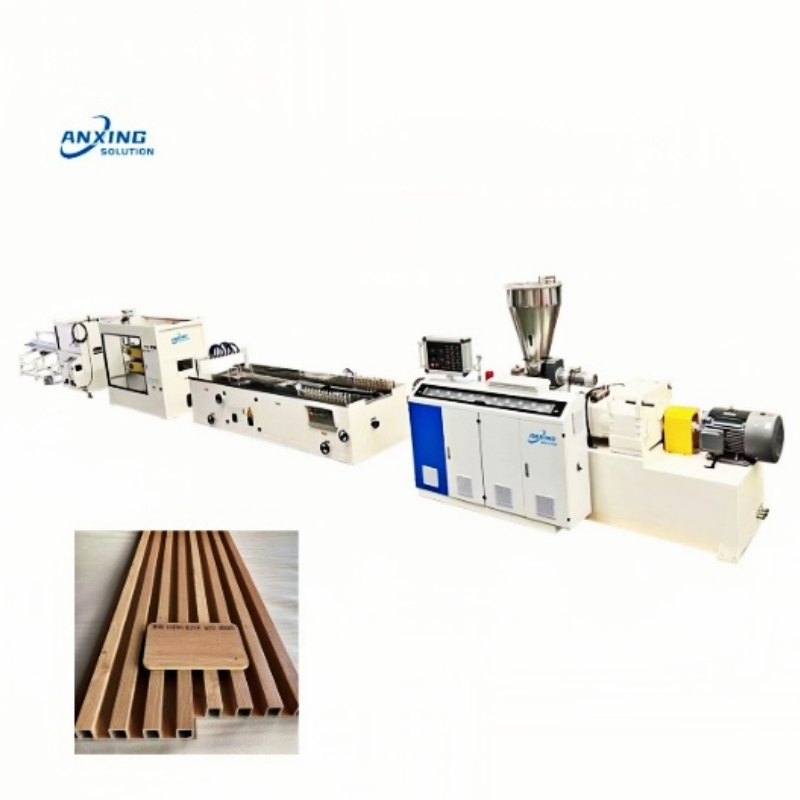

WPC PVC Louver Panel Making Machine is used for making WPC fluted wall panel which is now a popular product applied in decoration. It could help the decoration more exquisite and improve a level. The machine includes four main parts: twin screw extruder, vacuum calibrator, hauling engine and cutting machine. High-quality world-famous brands of motors, engines, and gearboxes are utilized to guarantee performance.

Technical Parameters

Model Details	53/128	65/132	80/156 (A)	80/156 (B)
Applicable product width	200-300mm	600-600mm	595-603mm	100mm
Extruder model	SJSZ53/128	SJSZ65/132	SJSZ80/156	SJSZ80/156
Capacity (kg/h) / 24h	~5000 (2500m²)	~8000 (3000m²)	~12000 (4800m²)	~12000 (400m²)
Main motor power (kw)	22	37	55	55

Our Key Advantages

World famous brand inverter -- ABB, stable and reliable.

World famous brand contactor -- Schneider, reliable performance.

World famous brand temperature controller -- Omron, precision control.

Low power consumption: minimum total line consumption is 25kw/hour.

High speed, double output compared to common production lines.

Dedicated PVC ceiling screw for best plasticizing effect.

PID temperature control with automatic fluctuation adjustment.

Supports caco3 filler up to 300phr, reducing formula costs.

Equipped with infrared tracking to eliminate flow rate fluctuations.

Online hot stamping integration for easy operation and labor saving.

Machine Components & Production

Manufacturing Center

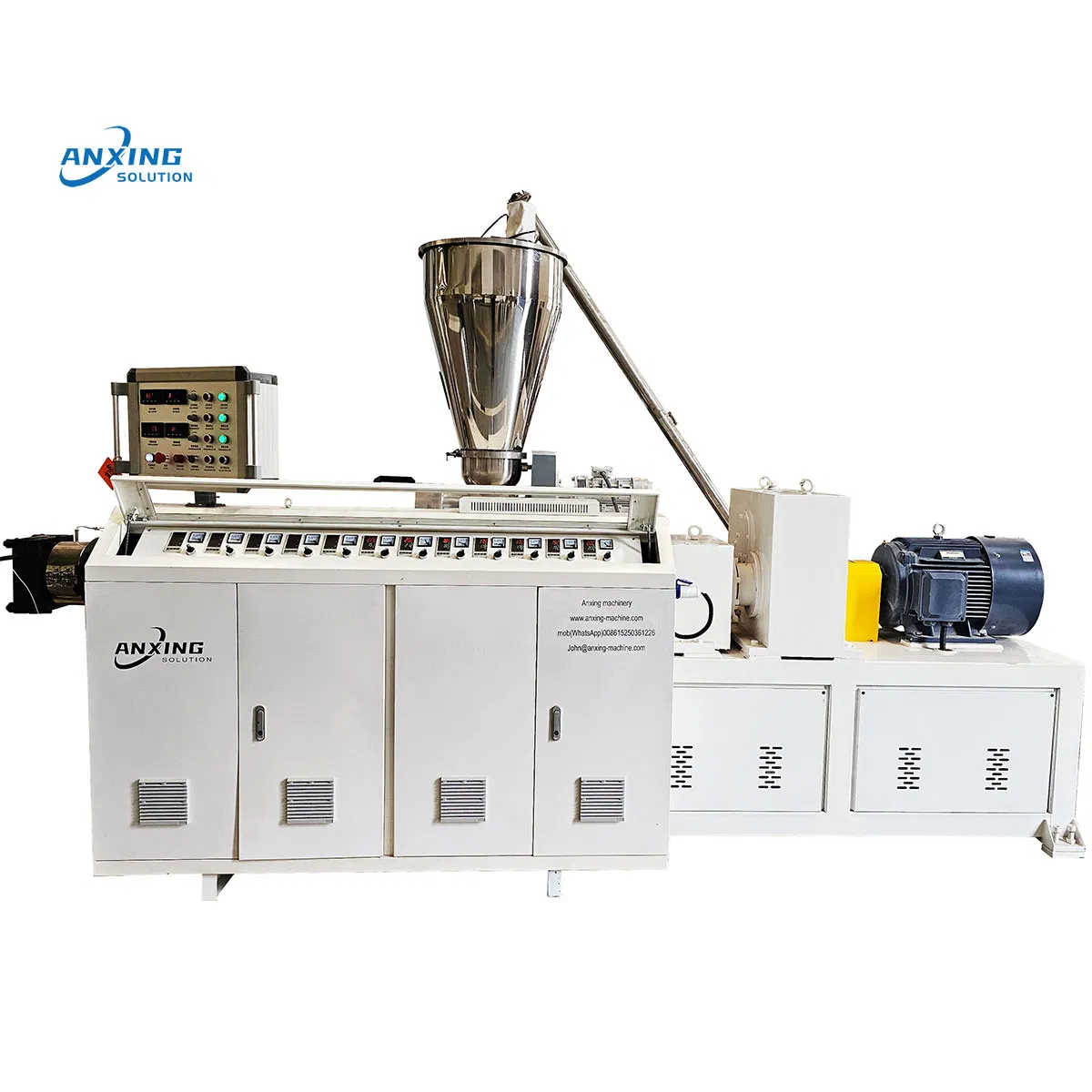

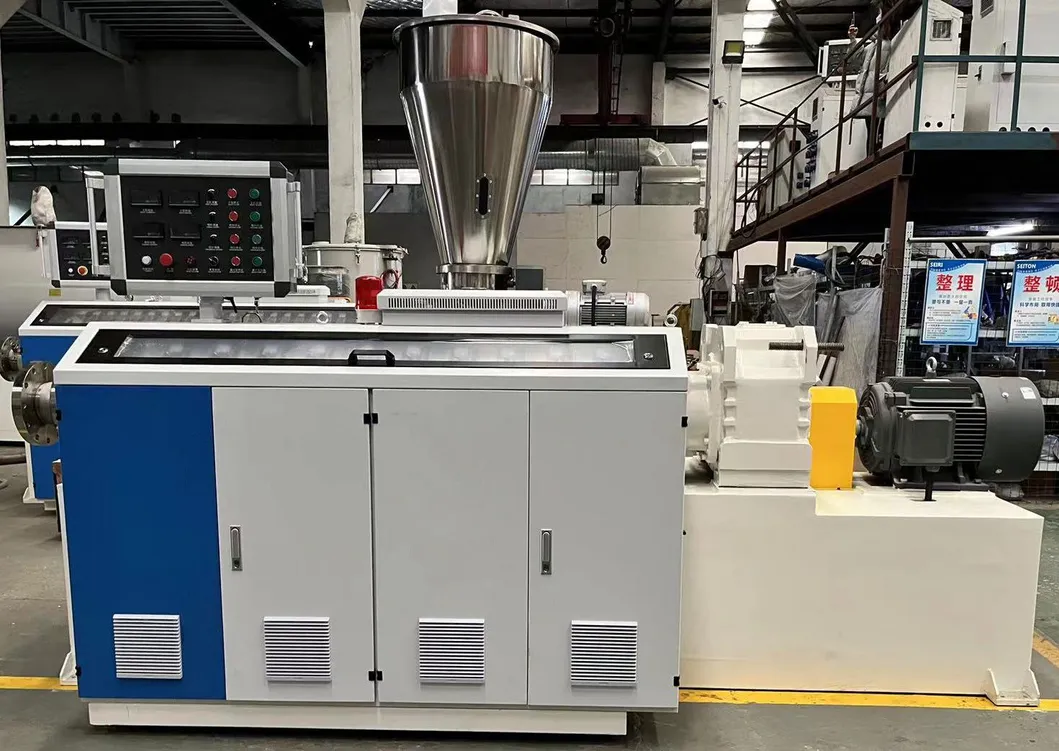

65/132 Double Screw Extruder

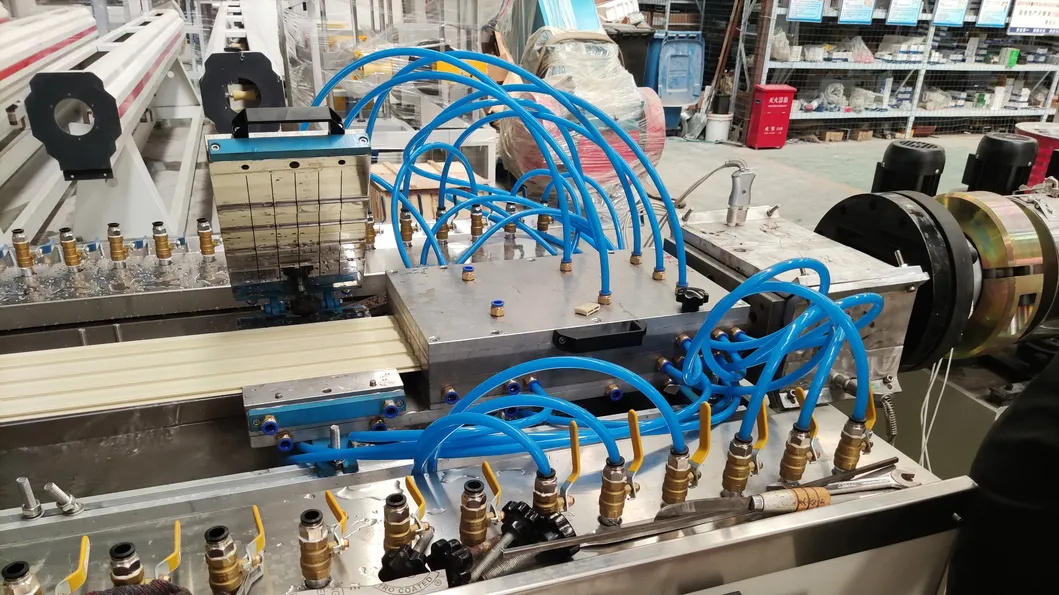

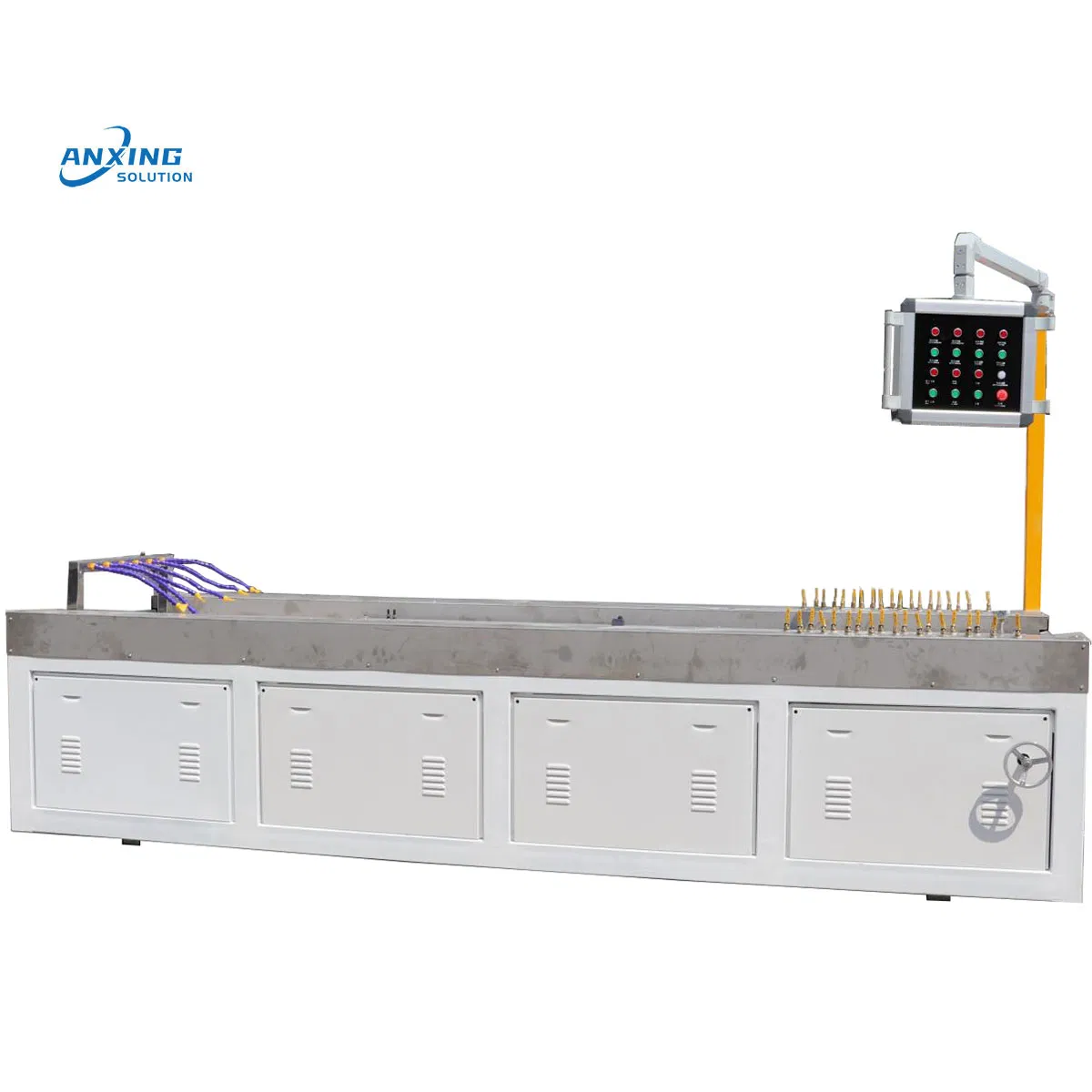

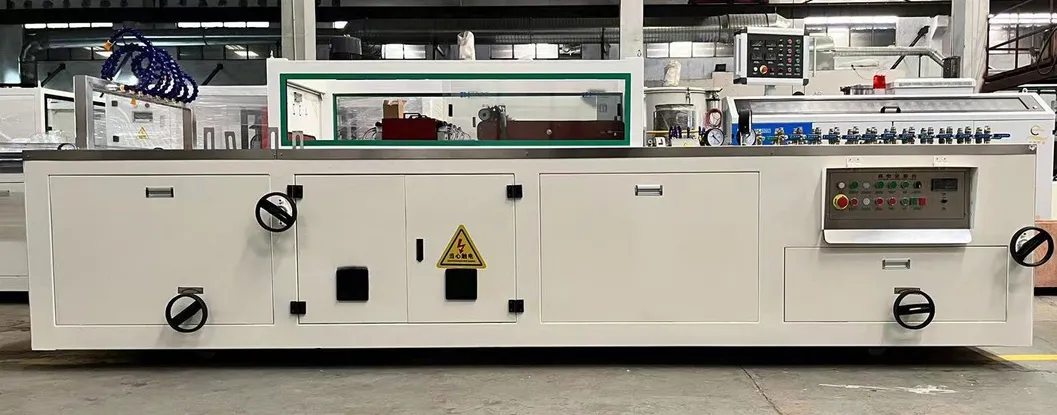

4m Calibration Table

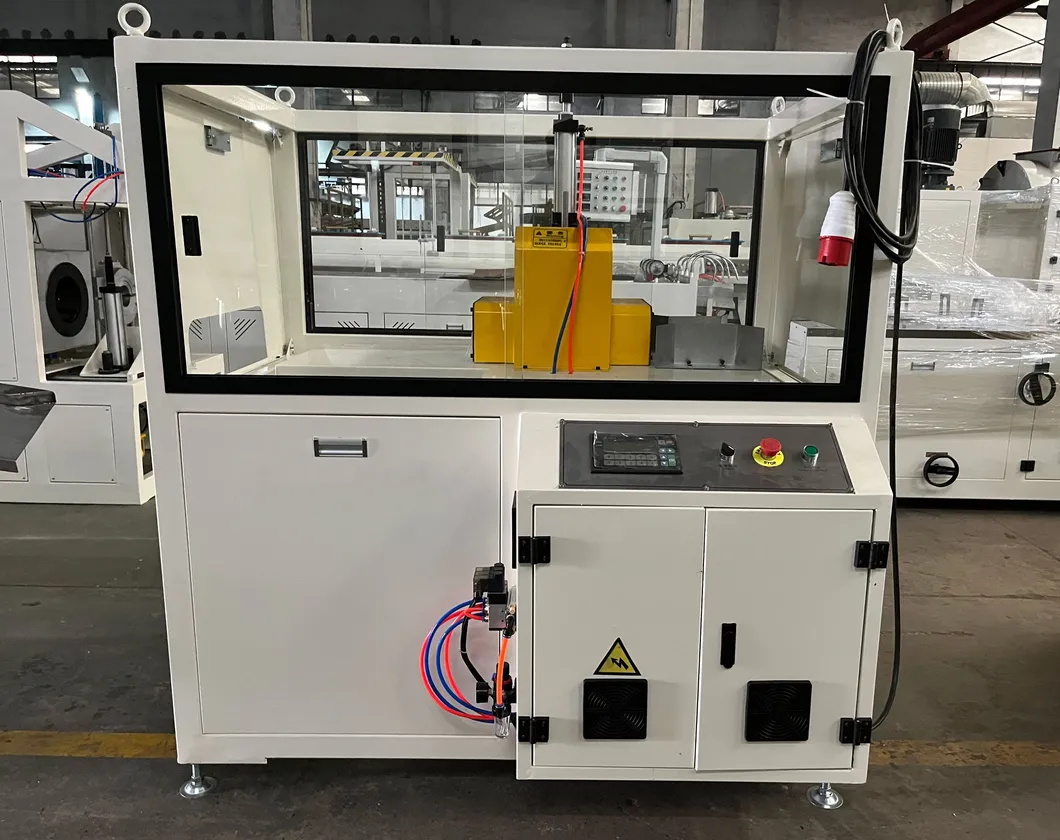

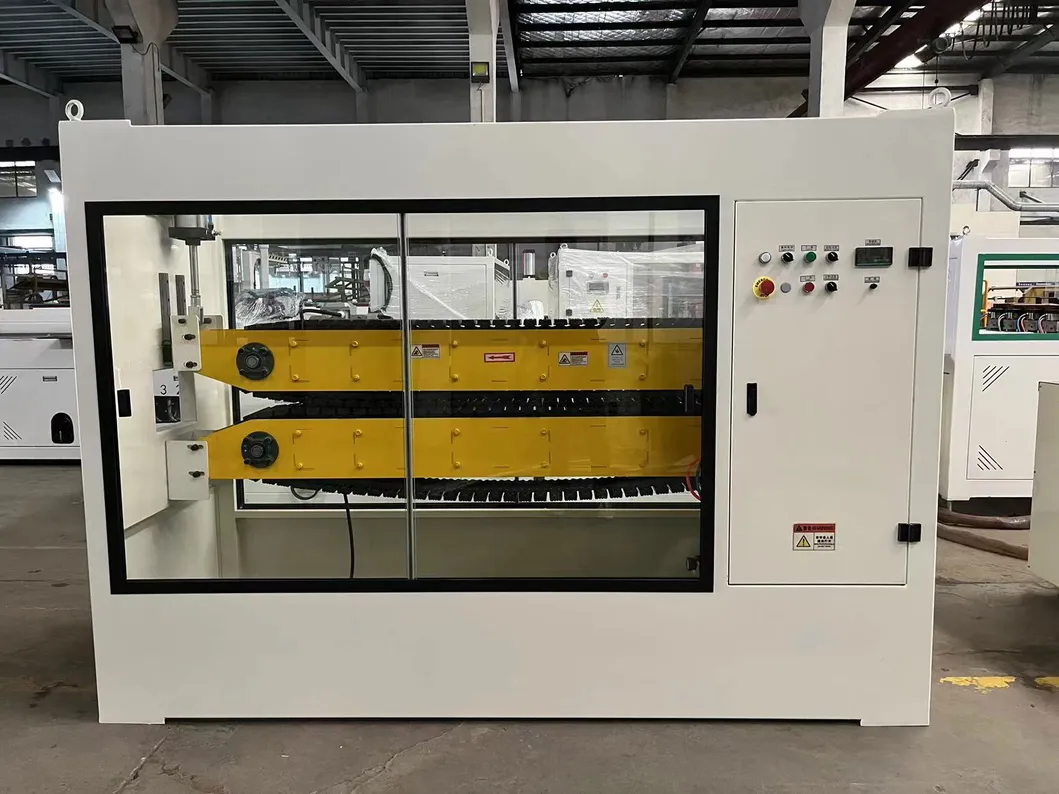

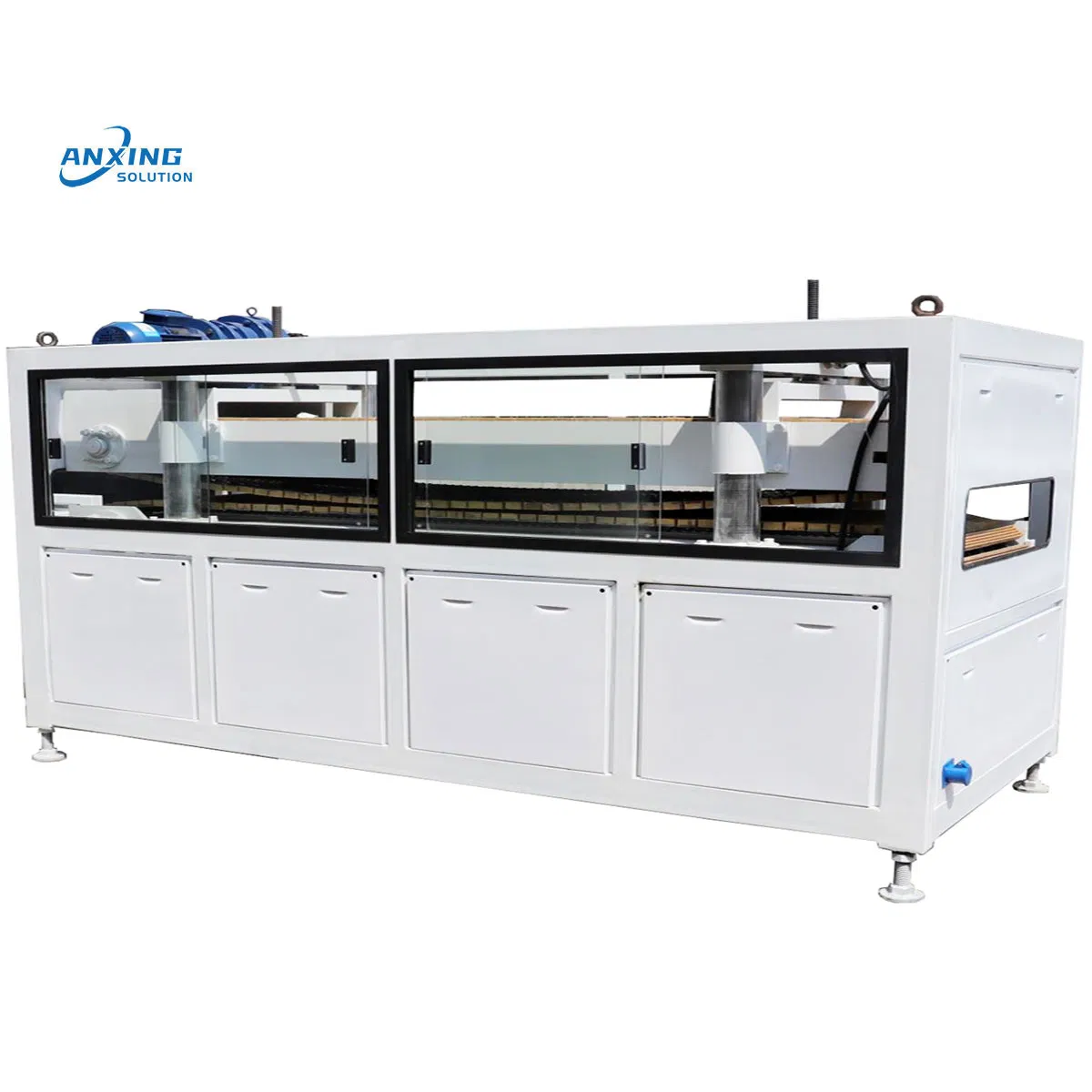

Haul-off Machine

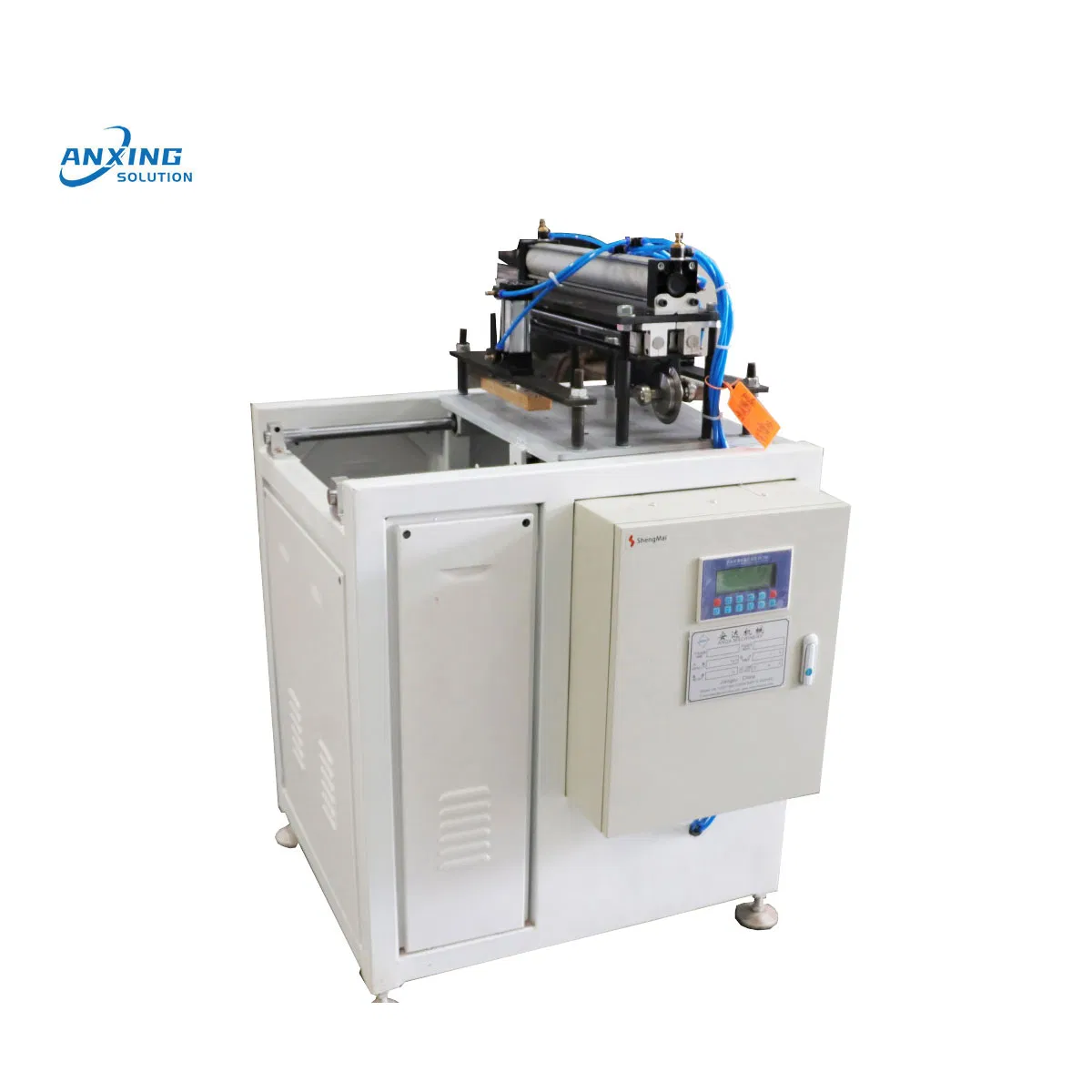

Automatic Cutting Machine

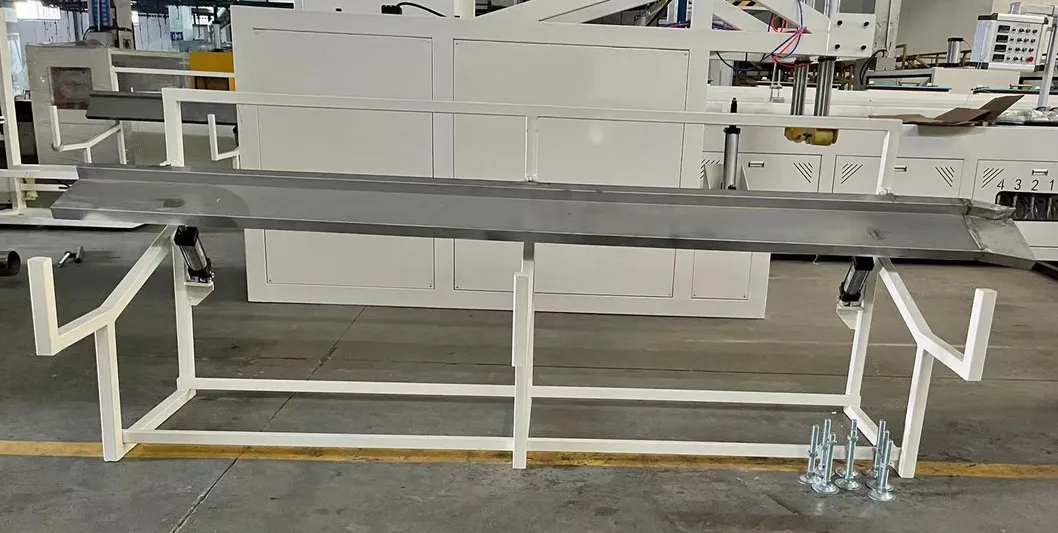

Stacker System

WPC Louver Panel Mould

Customized High Speed Mould

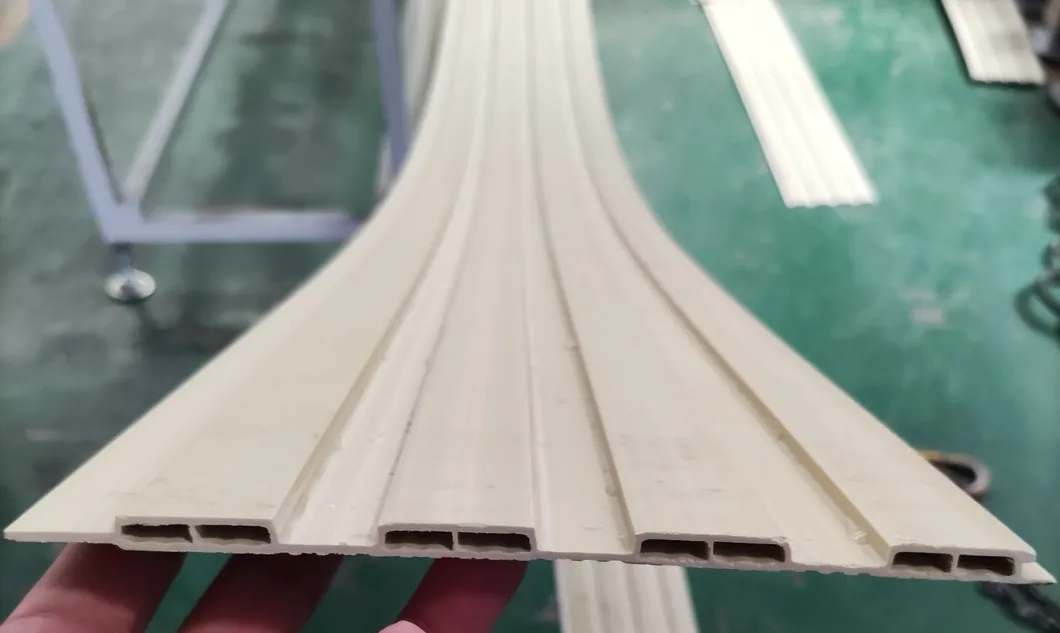

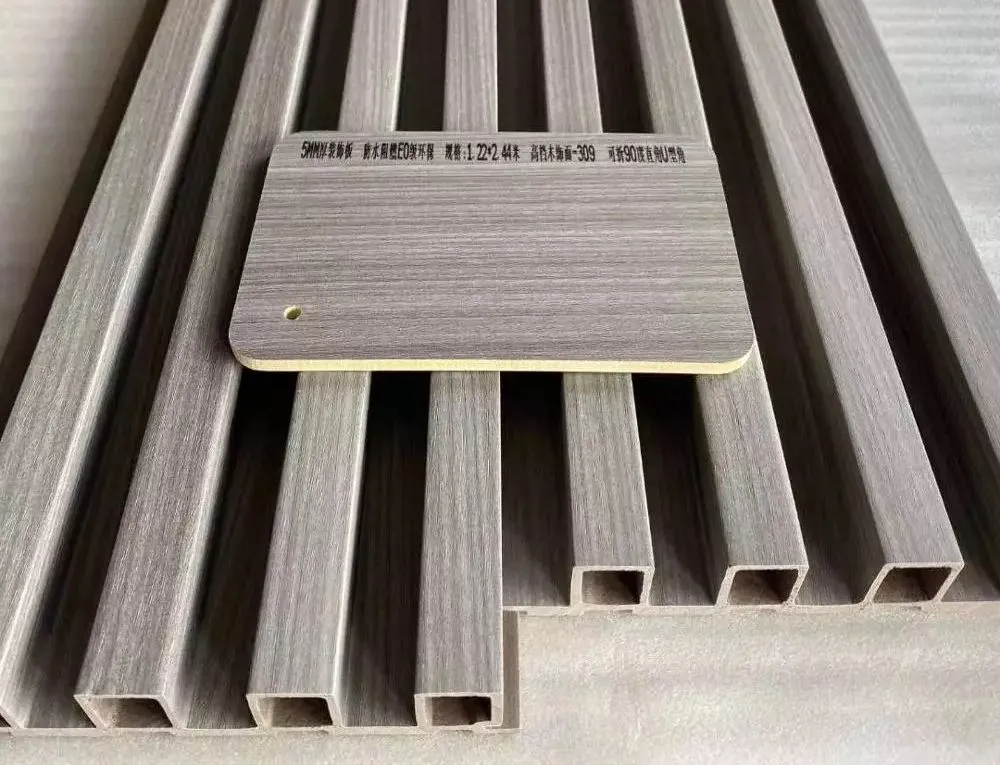

Finished WPC Louver Panel

International Exhibition Presence

Frequently Asked Questions

What is the main application of the WPC Louver Panel Making Machine?

The machine is specifically designed to produce WPC (Wood Plastic Composite) fluted wall panels and louver panels, which are widely used for exquisite interior and exterior wall decoration.

How does the machine ensure production quality and stability?

We use world-renowned components such as ABB inverters, Schneider contactors, and Omron temperature controllers. Additionally, the infrared tracking device ensures stable extrusion flow rates.

Is the production line energy-efficient?

Yes, the machine is designed for low power consumption. It can save 25-30% of electrical power compared to standard PVC production lines, with a minimum consumption of about 25kw/hour.

Can the machine handle high filler content formulas?

Absolutely. The extruder is capable of handling calcium carbonate (caco3) filler up to 300phr, which significantly helps in reducing the overall material formula cost.

What types of products can be manufactured with this line?

This extrusion line is versatile and can produce PVC Edge Bands, PVC Ceilings, Wall Panels, PVC Profiles, and WPC Fluted Wall Panels with various moulds.

What after-sales and delivery services are provided?

We support various delivery terms including FOB, CFR, CIF, and EXW. All machines undergo a final inspection before shipment to ensure they meet quality standards.
